Product Introduction:
Model:XT-CPD2206
LED chip: 2835
Power(W): 2W
Battery(Ah):3.2V/7,000mAh
Protection level: IP65
Wind resistance level: Grade 12
Send Inquiry
Description
Technical Parameters

Yantai Xutai New Energy Technology Co., Ltd. is one of the most reliable manufacturers and suppliers of solar landscape bollard lamp supplier in China, featured by quality products and good service. With abundant experience, we warmly welcome you to buy solar landscape bollard lamp supplier made in China here from our factory.



Garden Waterproof Outdoor Solar Lights



Solar Landscape Bollard Lamp – Custom Design & One-Stop Development Solution



Suntisolar Solar Bollard Lamp is more than a standard outdoor lighting product. It is a custom-designed solar lighting solution developed around the specific requirements of each customer and project.



With our in-house design and engineering capabilities, we can develop distinctive solar bollard lamp based on your preferred appearance, dimensions, lighting performance, installation method, battery capacity, and application environment. Whether you need a completely new design or want to modify an existing concept, our team can turn your ideas into a practical and manufacturable solar lighting product.



From Concept to Finished Sample



We provide a complete development process under one roof, helping customers move from an initial idea to a physical sample efficiently.

Design Concept → 3D Drawing → Engineering Development → Prototype → Sample Production → Sample Delivery



Our design team can work with customer-provided sketches, reference products, technical specifications, or simply an initial concept. Based on these requirements, we develop the product structure and appearance, prepare design drawings, and optimize the solar lighting system for real-world applications.



Once the design is confirmed, we proceed with prototype development and sample production, allowing customers to evaluate the appearance, lighting effect, dimensions, materials, and overall performance before moving into mass production.



Why Choose Suntisolar Solar Bollard Lamp?

  • Modern and versatile appearance
  • Designed to complement landscape architecture
  • Solar-powered and grid-independent
  • No underground electrical cabling required
  • Fast and flexible installation
  • Automatic dusk-to-dawn operation
  • Energy-efficient LED illumination
  • Weather-resistant construction
  • Suitable for year-round outdoor use
  • Low operating and maintenance requirements
LED Solar Garden Pathway Light



 Solar Bollard Lamps application case

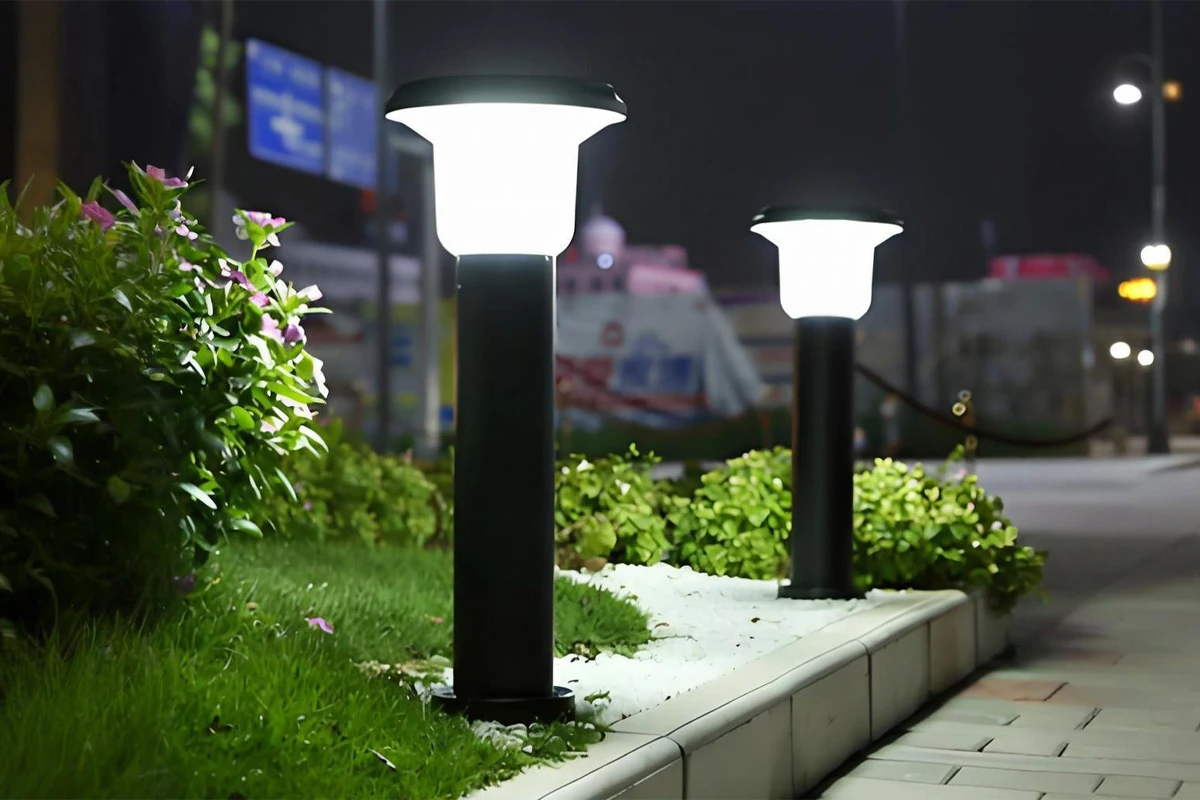

Garden Solar Lights Lamp

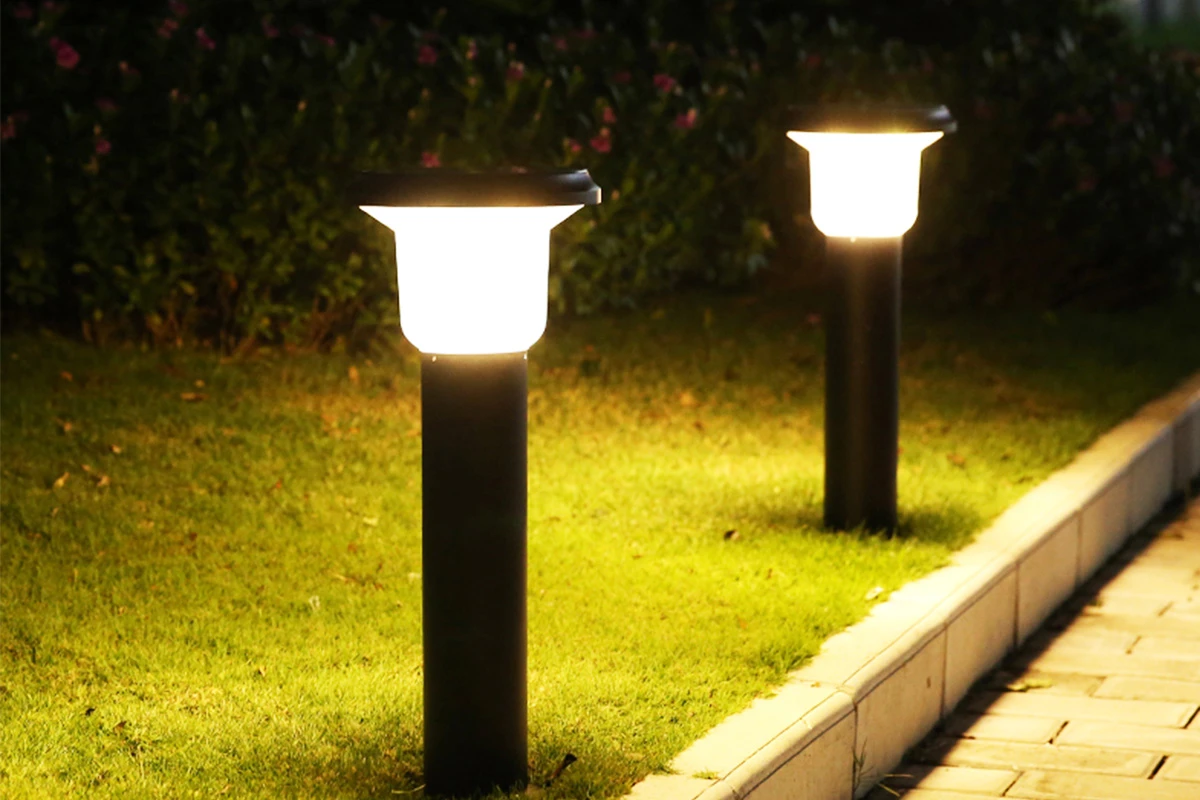

Solar Garden Path Lawn Lights



Technical specification

Model

XT-CPD2206

LED chip

2835

Module quantity (pcs)

1

Power (W)

2W

Solar panel (Wp)

5V/4.5Wp

Battery (Ah)

3.2V/7,000mAh

Control mode

Light Control+Time Control

Charging time (1,000W/m2)

6h

Material

Aluminium+ PC

Dominant hue

Black

Beam angle (°)

C0~180 120°/ T90~270 120°

Protection level

IP65

Photoelectric parameter

Color temperature (K)

3,000-6,500K

CRI (Ra)

70

Smart mode

YES

Continuous working hours (h)

12

Packing dimension

Net weight (kg)

3kg±5%

Gross weight (kg)

7.8kg±5% (2pcs/box)

Physical dimension (mm)

260×260×850mm±5%

Packing dimension (mm)

920×520×310mm±5%

Quantity in 20 feet/40feet container

288PCS/728PCS

Environmental temperature

Discharging temperature (℃)

-20~60

Charging temperature (℃)

-20~60

Storage temperature (℃)

0~45

Installation

Fixed interval (mm)

60mm

Screw fixation

M8 expansion bolt

Wind resistance level

Grade 12

Installation

On ground outdoor

Irradiation area (m2)

12



FAQ

Can I get a sample to test the product before bulk order?

Yes, sample order are welcomed and flexible, Our sales team are happy to assist you for the process.

How many pcs of this product can fit in one container?

This products can fit 288pcs/728pcs in 20'/40' container respectively.
