All in one solar light Z88 220W
Product Description
With a high luminous efficiency of 240lm/W and a total luminous flux of 26000lm, the luminaire provides high-brightness, uniform and flicker-free road illumination, effectively eliminating dark spots and yellow light areas on highway roads, improving driving visibility and greatly ensuring highway driving safety day and night.
The ±15° adjustable lighting angle and professional highway light distribution design perfectly match wide highway road surfaces, realizing accurate light coverage, effective glare suppression, and avoiding dazzling light interference for high-speed moving vehicles and driverss.
Product advantage

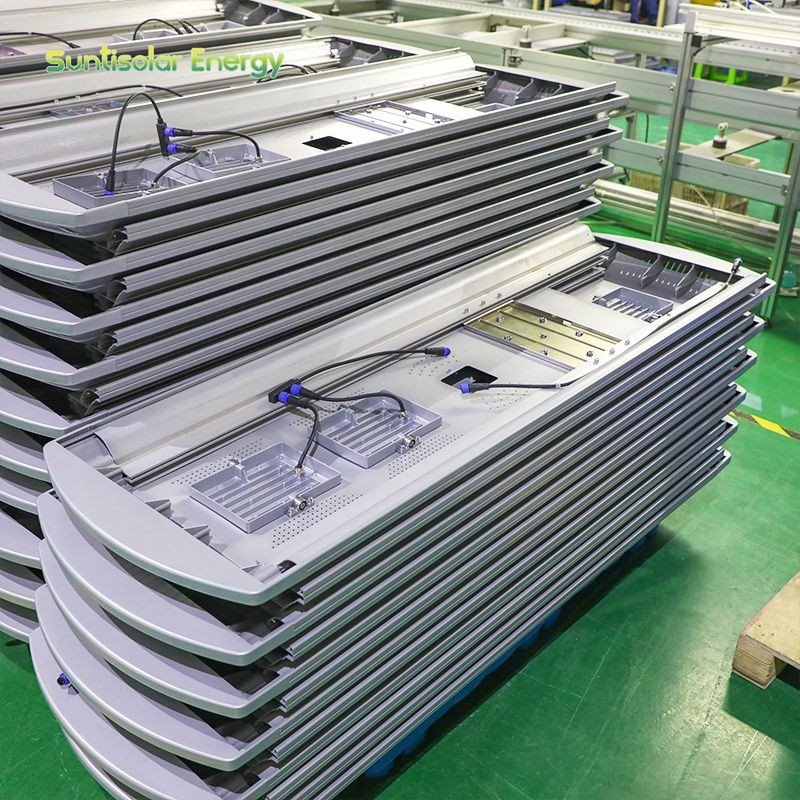

Each lightsource has a radiator, waterproof cap, and all materials. It is aluminum, 3CE waterproof copper wire.
The thick aluminum radiator ensures the good performance of LED radiation and directly determines the service life
Technical Parameters
|
Model |
XT2358SELD220-D5 |
|
LED Quantity |

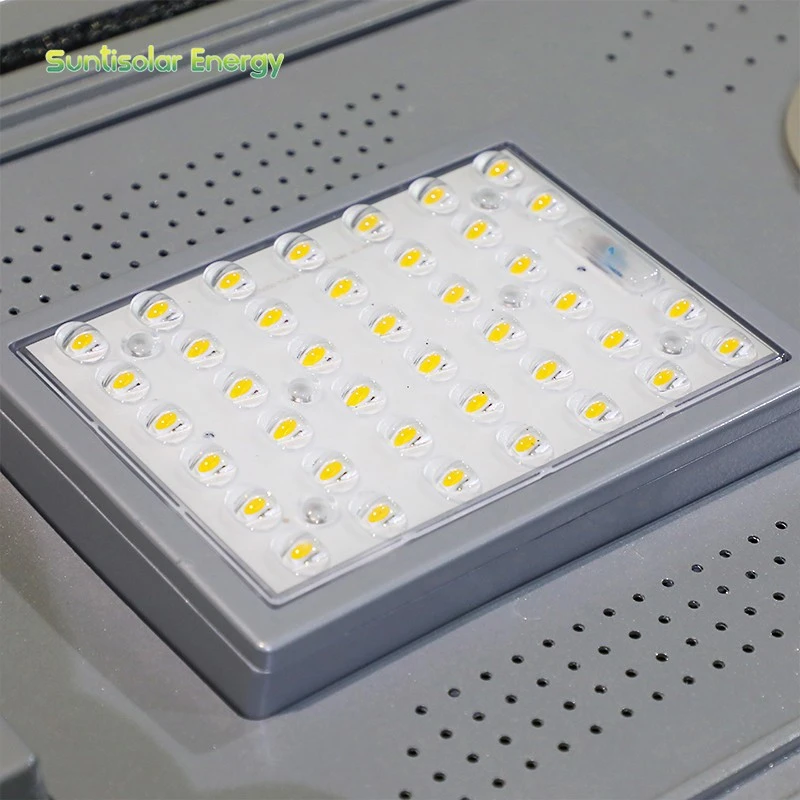

40 PCS 5050 |
|
Module Quantity (pcs) |
3 |
|
Power |
220W |
|
Solar Panel |
Monocrystalline Silicon of 36V/315W |
|
Battery |
LiFe PO4 Lithium Battery 75Ah/25.6V(=1920Wh) |
|
Adjustable Angle of Module (±15°) |
Yes |
|
Contrtol Mode |
Light Control+Time Control |
|
Working time under full power |
12h |
|
Working time under smart power control |
84h |
|
Charging time (1,000W/m2) |
6h |
|
On-off threshold level |
on≦8LUX, OFF≧10LUX |
|
Material for secondary lighting distribution |
PC |
|
Beam Angle |
C0~180 150°/ T90~270 80° |
|
Protection Grade |
IP66 |
|
Photoelectric Parameter |
|
|
Color Temperature (K) |
3,000-6,500K Optional |
|
CRI (Ra) |
70 |
|
Lumens (lm) |
26,000lm for 12 hours full power |
|
Intelligent Mode |
Yes |
|
Working under rainy days |
7 to 10 days |
|
Package |
|
|
Net Weight |
55.5kg±5% |
|
Gross Weight |
112.5kg±5%(2pcs/box) |
|
Product Dimension |
2,358*708*122mm±5% |
|
Package Dimension |
2,383*285*760mm±5% |
|
Quantity in 20/40 Feet Container |
72/240PCS |
|
Installation |
|
|
Diameter of Pole |
Ø89mm |
|
Screw Fixation |
YES |
|
Wind resistance level(km/h) |
209 |
|
Installation Height (m) |
12-13 |
|
Installation Distance(m) |
30-45 |
|
Irradiation Area(m2): |
630 |
Products Description
All in one solar light Application Scenario
Customized Matching Support
All in one solar light Z88 220W According to actual project demands, we provide comprehensive personalized matching services, including adjustable product power, customized color temperature, exclusive LOGO printing, special anti-corrosion surface treatment, and customized light pole height and installation aperture. For special environments such as coastal salt fog, high temperature and heavy rainfall, we can upgrade protection levels and battery standby configurations to ensure full environmental adaptability of the project.
Matching Pole Height: 10m–13m hot-dip galvanized light pole.
Certificate
FAQ
1-Please quote best price for solar street light.
Reply: Sure, we will send you our best FOB price with full specs and warranty details shortly.
Send me price list of all-in-one solar street lights.
Reply: Glad to share our full product price list and catalog for your reference right now.
What is your cost for solar outdoor LED lights?
Reply: We offer competitive factory direct price, please tell me your required wattage and quantity.
Need quotation for 100pcs solar street light project.
Reply: Received your project demand, we will prepare formal quotation with shipping info within 1 hour.
Quote FOB Yantai price for solar street light.
Reply: We can offer FOB Yantai, FOB Qingdao and FOB Shanghai price for your choice.
What payment terms do you accept?
Reply: We accept T/T, L/C, PayPal, Western Union and Trade Assurance.
