Yantai Xutai New Energy Technology Co., Ltd. is one of the most reliable manufacturers and suppliers of smart all in one solar street light in China, featured by quality products and good service. With abundant experience, we warmly welcome you to buy smart all in one solar street light made in China here from our factory.

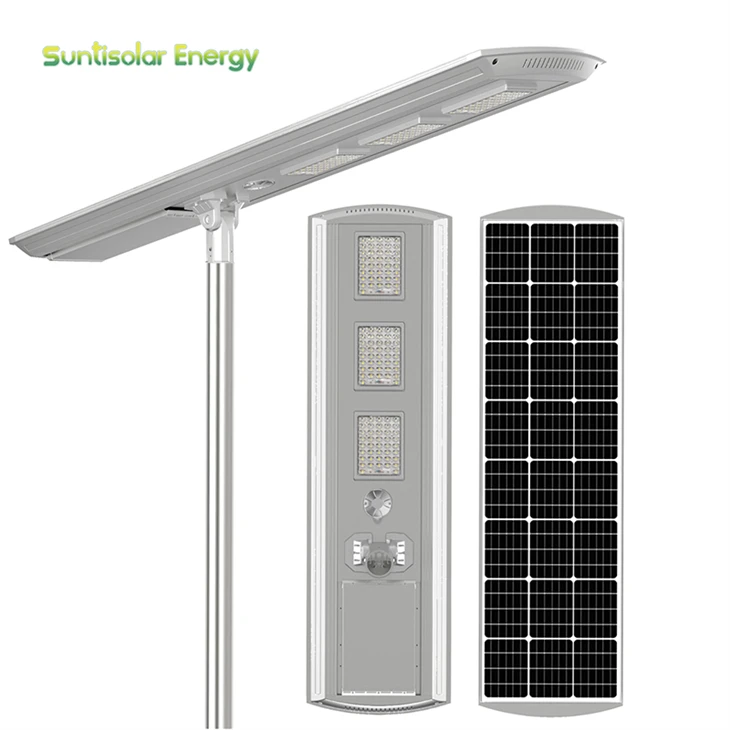

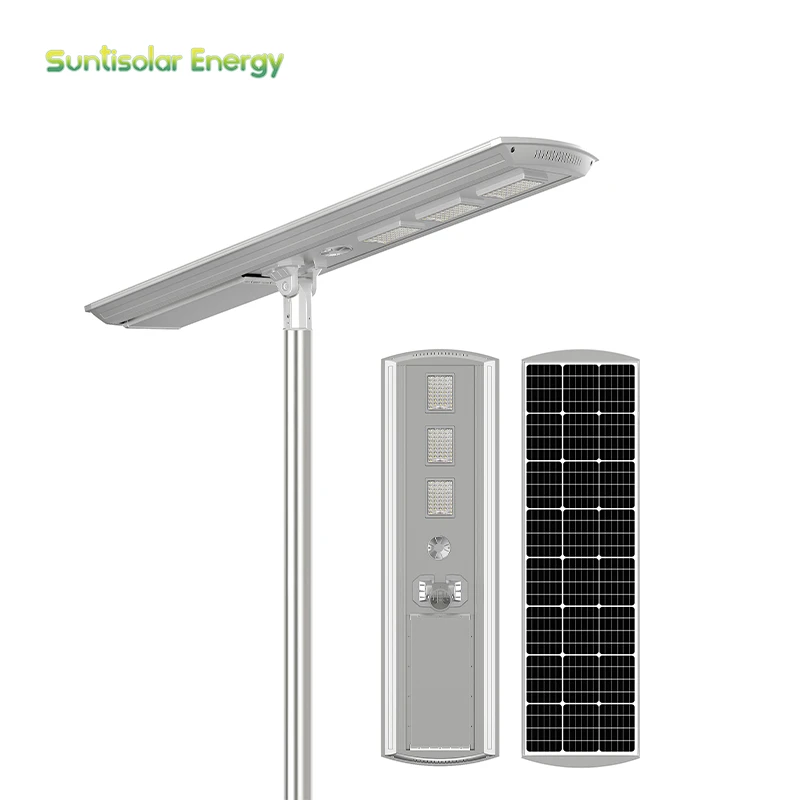

Smart all in one solar street light Z88 200W
Product Description
The Smart all in one solar street light adopts high-efficiency imported monocrystalline silicon solar panels with a photoelectric conversion rate exceeding 24% and an annual power depreciation rate of no more than 1%, ensuring a service life of over 25 years. Its constant current charge-discharge management module adopts premium international brand components (ST, IR) with a 50,000-hour service life. Supported by advanced MPPT technology with a tracking efficiency of ≥99.8% and a 98% DC-DC conversion rate, the product supports four-stage timing control to meet diverse customer needs. It is equipped with 50-meter 2.4G offline programmable remote control, as well as mobile APP and computer software management for flexible adjustment of parameters, working modes and power status, with an IP67 protection grade.
Product advantage

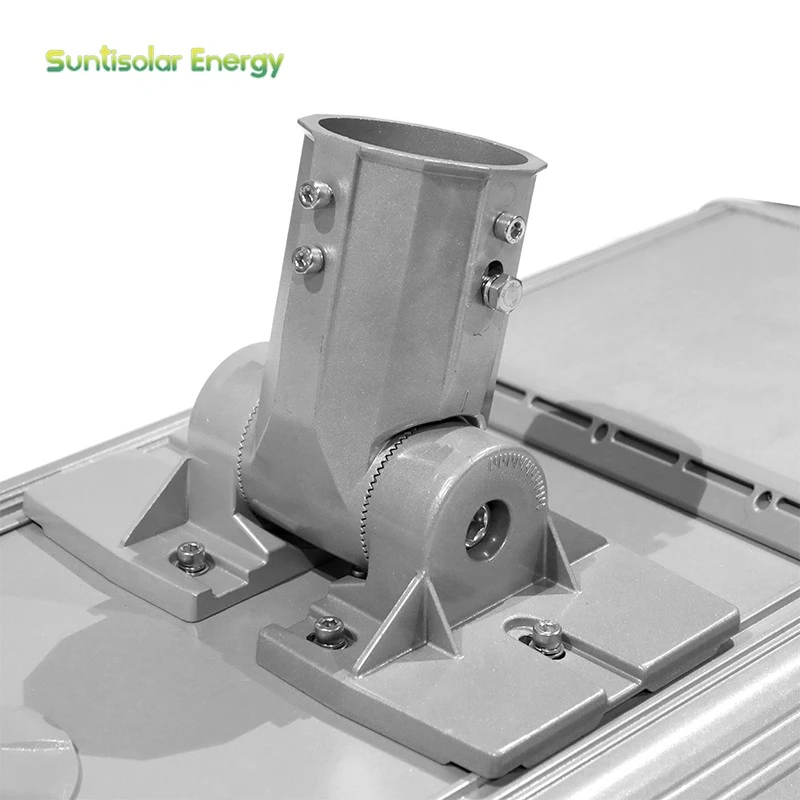

Die Casting aluminum are largely used for brackets. Strong aluminum structure frame guarantee the safety.
0.8mm thickness bracket plus double gear structure is unique to hold the complete light with pole.
Reasonable wind ventilation design of whole system.
Light installation angle is 90 degrees adjustable to match different application Environment
Technical Parameters
|
Model |
XT1968SELD200-D5 |
|
LED Quantity |
40 PCS 5050 |
|
Module Quantity (pcs) |
3 |
|
Power |
200W |
|
Solar Panel |
Monocrystalline Silicon of 36V/255W |
|
Battery |
LiFe PO4 Lithium Battery 60Ah/25.6V(=1536Wh) |
|
Adjustable Angle of Module (±15°) |
Yes |
|
Contrtol Mode |
Light Control+Time Control |
|
Working time under full power |
12h |
|
Working time under smart power control |
84h |
|
Charging time (1,000W/m2) |
6h |
|
On-off threshold level |
on≦8LUX, OFF≧10LUX |
|
Material for secondary lighting distribution |
PC |
|
Beam Angle |
C0~180 150°/ T90~270 80° |
|
Protection Grade |
IP66 |
|
Photoelectric Parameter |
|
|
Color Temperature (K) |
3,000-6,500K Optional |
|
CRI (Ra) |
70 |
|
Lumens (lm) |
24,000-28000lm |
|
Intelligent Mode |
Yes |
|
Working under rainy days |
7 to 10 days |
|
Package |
|
|
Net Weight |
45kg±5% |
|
Gross Weight |
95kg±5%(2pcs/box) |
|
Product Dimension |
1,968*708*122mm±5% |
|
Package Dimension |
1,993*285*755mm±5% |
|
Quantity in 40 Feet Container |
100/288PCS |
|
Installation |
|
|
Diameter of Pole |
Ø89mm |
|
Screw Fixation |
YES |
|
Wind resistance level(km/h) |
209 |
|
Installation Height (m) |
12-13 |
|
Installation Distance(m) |
30-45 |
|
Irradiation Area(m2): |
630 |
Application & Customization
Smart all in one solar street light for government highway, urban main road, and municipal lighting projects. We offer full customization support, including:
Power and battery capacity adjustments based on local sunshine and rainy‑day requirements.
Custom light distribution, color temperature, and control modes to meet project specifications.
Upgraded protection grades and anti‑corrosion treatments for harsh environments.
Professional lighting simulation reports and technical support for project approval.
Package
|
Item |
Products |
Unit |
Quantity |
Note |
|
1 |
200W Solar Street Light |
PCS |
2 |
|
|
2 |
6mm Allen Wrench |
PCS |
1 |
2% |
|
3 |
14mm Allen Wrench |
PCS |
1 |
2% |
|
4 |
Installation Instruction |
PCS |
1 |
|
|
5 |
Certificate of Approval |
Sheet |
1 |
|
|
6 |
Test Report |
PCS |
1 |
FAQ
Looking for cheap and good quality solar street lights.
Reply: We have cost-effective models with IP66 and 5-year warranty, recommend suitable ones for you.
Please provide formal offer for solar street light.
Reply: Formal quotation including specs, package, MOQ and payment terms will be sent to you soon.
How much is your integrated solar street light?
Reply: Please let me know your order quantity, we will give you exact unit price and discount.
Interested in your solar garden light, quote please.
Reply: Thanks for your interest, I'll send you price, photos and technical parameters immediately.
Do you have CE and ISO certificate?
Reply: All our products have CE, RoHS, ISO certificates, can send you copy.
What's your after-sales service policy?
Reply: We provide 5-year warranty and lifetime technical support.
Visit your factory in China next month.
Reply: Warmly welcome your factory visit, we will arrange pickup and reception for you.
