60W-LED
[Specification]
60W LED solar street light
Application
- [Road lighting (urban roads, streets, highways, etc.)
- District lighting (municipal square, commercial area, parking lot, etc)

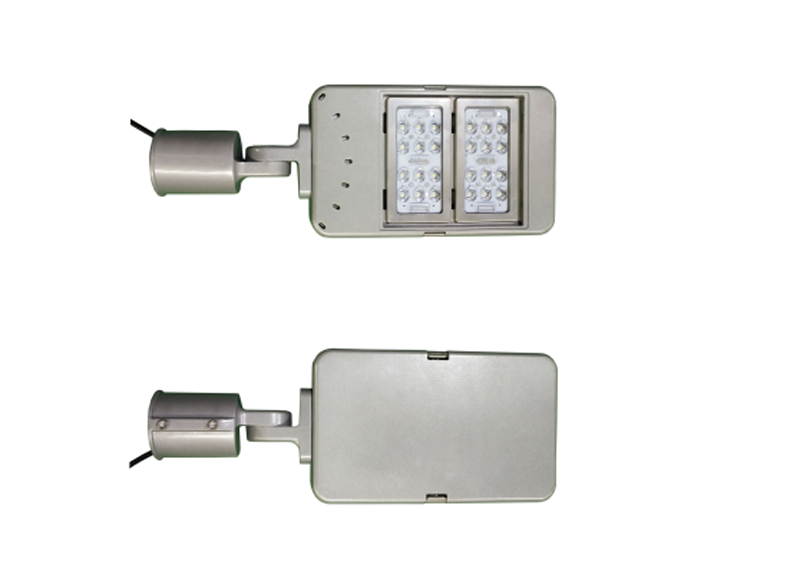

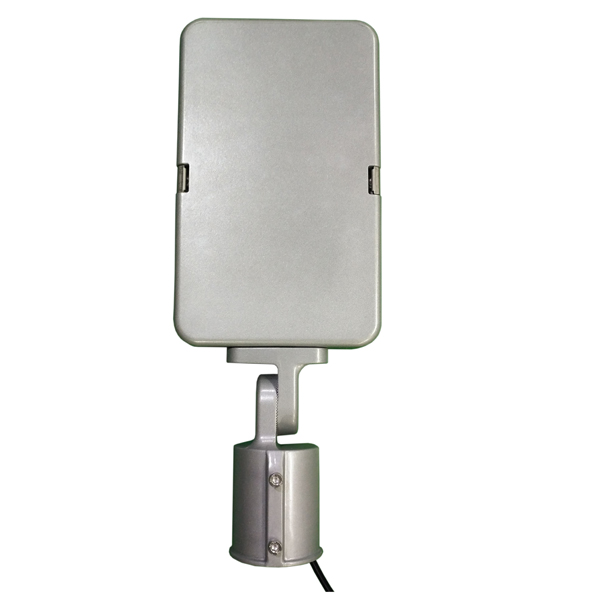

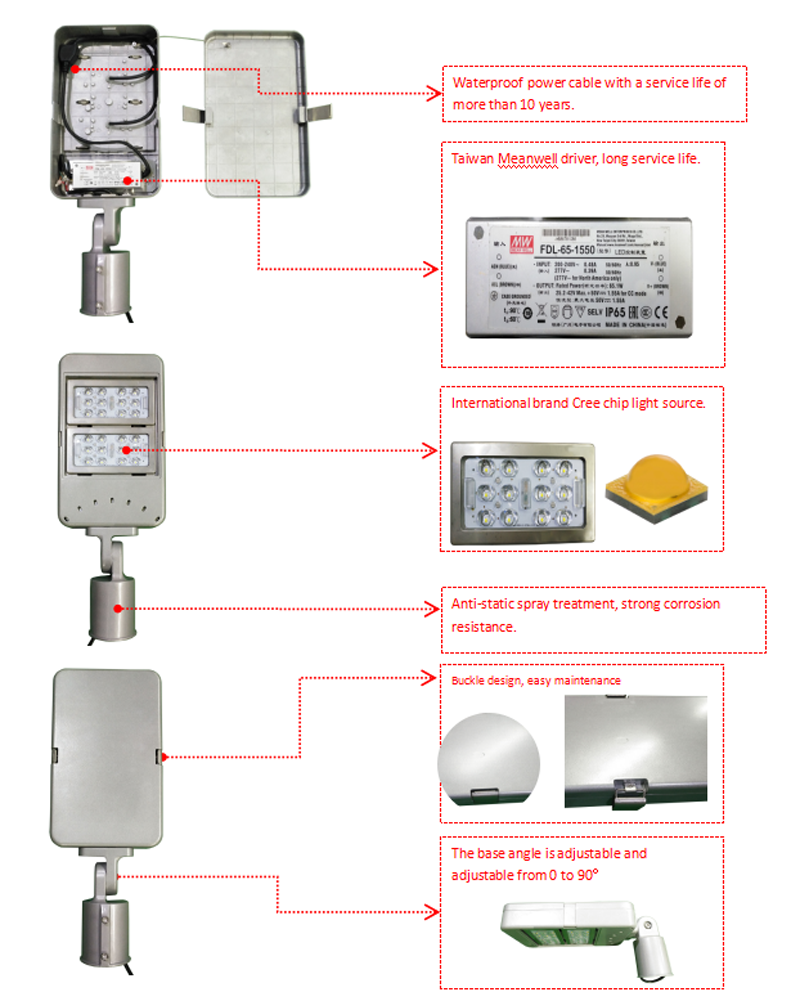

Product appearance view

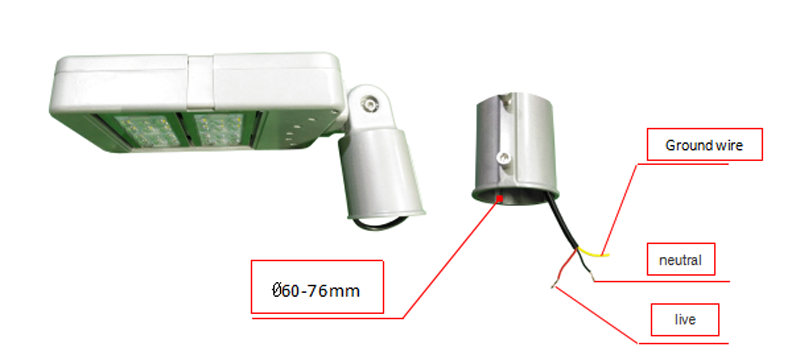

Installation Diameter
Detailed：
| Product Parameter | |
| Model |
XT540LD60 |
|
LED Quantity |
24 pcs3535 |
|
Module Quantity( pcs） |
2 |
|
Power：（W） |
60W |
|
Light source brand |
CREE |
|
Power brand
|
Mean well |
|
Base angle |
0-90° |
|
Input voltage range (V) |
AC 200-240 |
|
Frequency (Hz) |
50/60 |
|
Power Efficiency |
90% |
|
Power factor |
0.95 |
|
Secondary light distribution material: |
PC |
|
Lamp color |
Silver gray |
|
Glare threshold (T) |
≦10 |
|
Protection against electric shock |
I class |
|
Electrical insulation rating |
CLASS II |
|
Beam angle（°） |
C0~180 140°/ T90~270 70°
|
|
Protection level |
IP65 |
|
Photoelectric Parameter： |
|
| Color Temperature(K)： |
6000-6500 |
| CRI(Ra)： |
70 |
| Lumens(lm)： |
6600-7200
|
|
Package： |
|
| Net Weight((kg)： |
3.5kg±5% |
| Gross Weight (kg)： |
4.5kg±5%(1pcs/box)
|
| Product Dimension (mm)： |
540×205×73mm±5% |
| Package Dimension(mm)： |
589×249×133mm±5% |
| Quantity in 20/40 Feet Container |
1008/2560PCS Pallets |
| Environmental Temperature | |
| Working Temperature (℃)： |
-40～60 |
| Storage Temperature (℃)： |
0～45 |
|
Installing Parameter： |
|
| Diameter of Pole： |
Ø60mm |
| Screw Fixation： |
209 |
| Wind resistance level(km/h)： |
6-7 |
| Installation Height (m)： |
18-21 |
| Installation Distance（m)： |
147 |

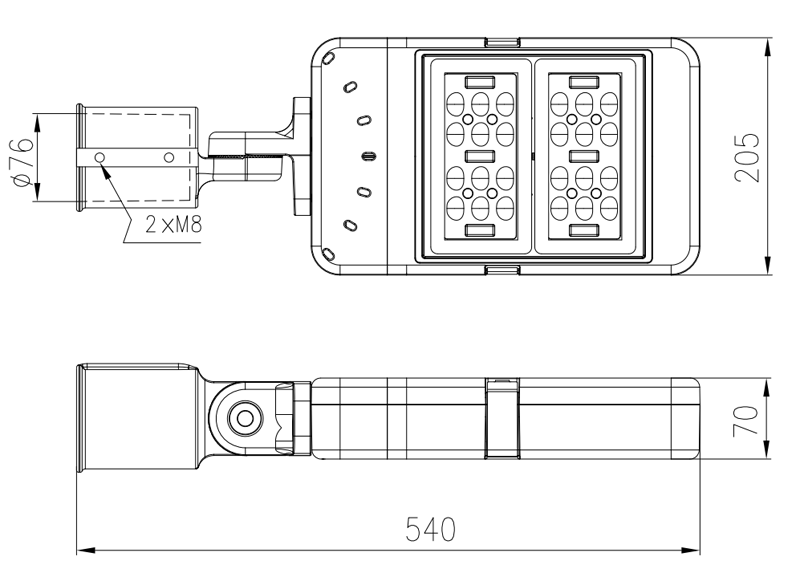

Appearance dimension drawing

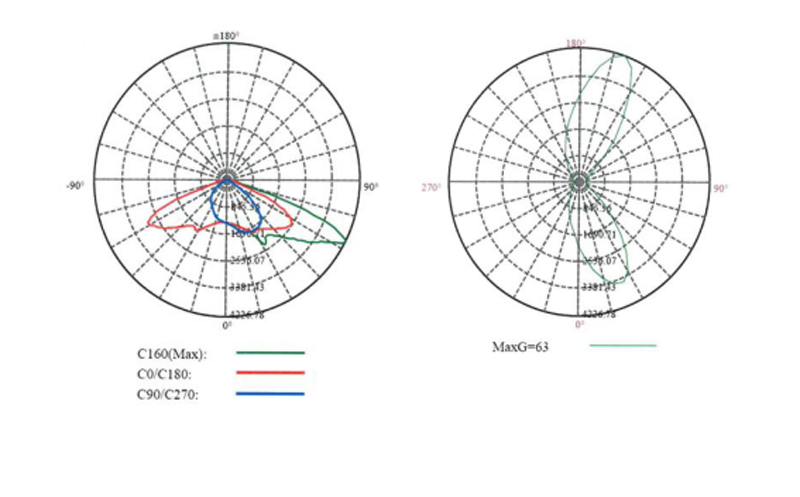

Light distribution curve

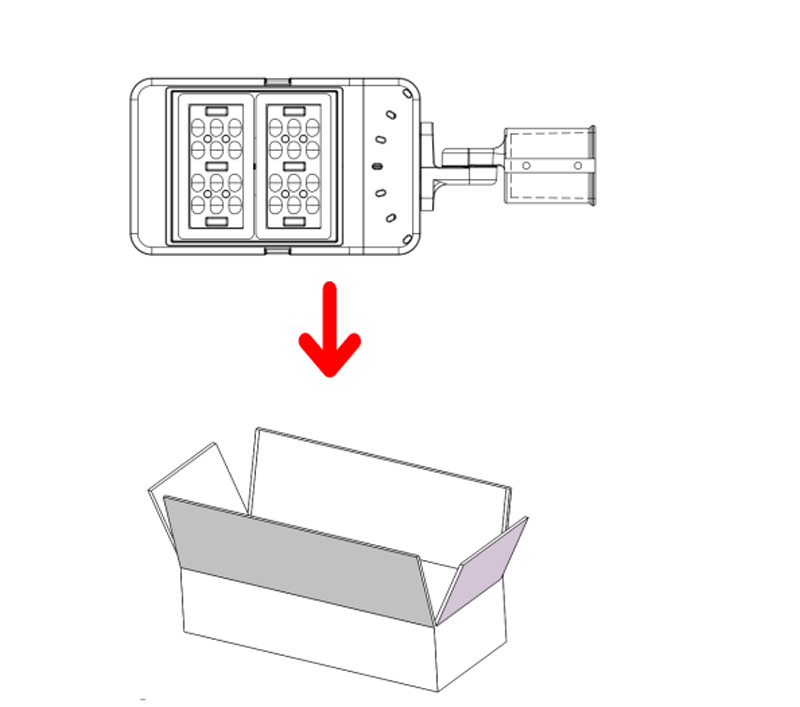

Packaging
Note：Container dimension is as below ：
20 Feet Container：5890×2342×2388mm，Entrance Height is 2280mm；
40HQ：12017×2342×2693mm，Entrance Height is 2580mm.

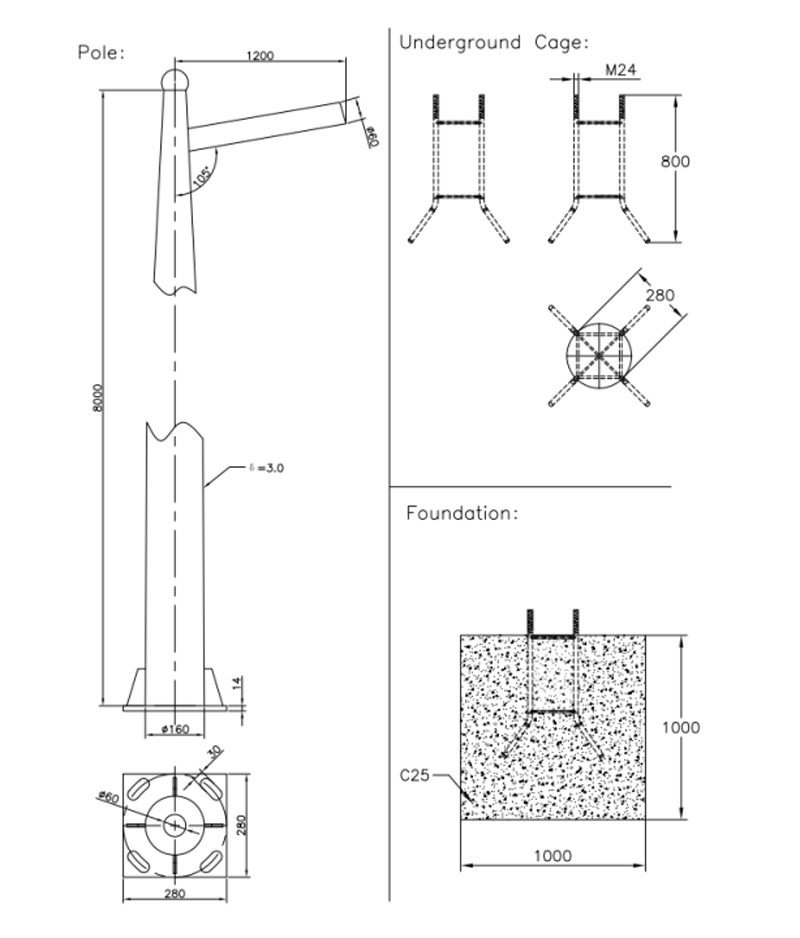

Recommended pole drawing（8m）

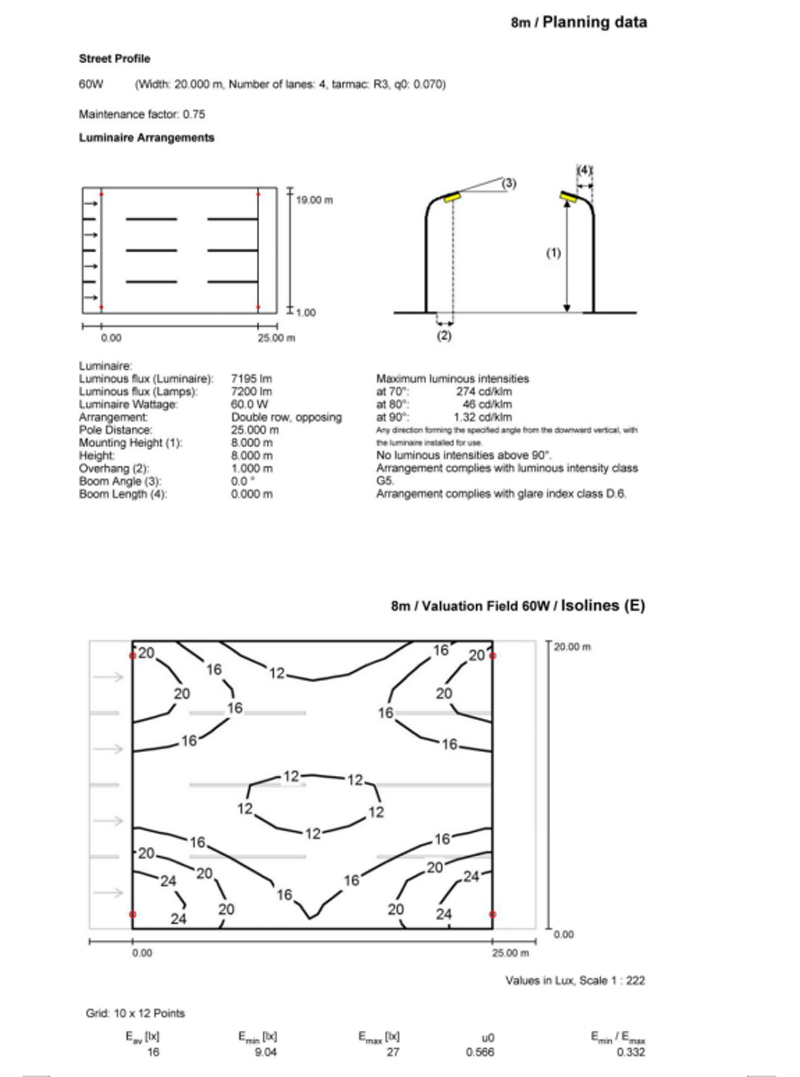

60W Illumination simulation-8m
