Discount Price Integrated Led Solar Street Light With Camera - Z66 20W SMD Specification – Suntisolar Detail:

1.1 Technical Parameters

Model：	XT925SELD20-D5
LED Quantity：	10 PCS 5050
Module Quantity（pcs）：	2
Power（W）：	20W
Solar Panel（Wp）：	Monocrystalline Silicon 18V/35W
Battery（Ah）：	Grade A Lithium Ion Battery 15Ah/12V
Adjustable Angle of Module（±15°）：	Yes
Control Mode：	Light Control+Time Control
Working time under full power（h）：	12h
Working time under intelligent power（h）：	36h
Charging time（1000W/m²）	6h
On-off threshold level（LUX）：	on≦8LUX，OFF≧10LUX
Secondary lighting distribution：	PC
Beam Angle（°）：	C0~180 140°/ T90~270 70°
Protection Grade：	IP65
Photoelectric Parameter：
Color Temperature（K）：	3000-6500K
CRI（Ra）：	70
Lumens（lm）：	2400-2800lm
Intelligent Mode:	Yes
Working under rainy days：	365 Days
Package：
Net Weight（kg）：	8.8kg±5%
Gross Weight（kg）：	19.0kg±5%(2pcs/box)
Product Dimension（mm）：	925×370×86mm±5%
Package Dimension（mm）：	945×225×445mm±5%
Quantity in 20/40 Feet Container：（Pallet）	480/1200PCS
Quantity in 20/40 Feet Container：（No Pallet）	600/1320PCS
Environmental Temperature：
Discharging Temperature（℃）：	-20～60
Charging Temperature（℃）：	-20～60
Storage Temperature（℃）：	0～45
Installing Parameter：
Diameter of Pole（mm）：	Ø60mm
Screw Fixation：	Yes
Wind resistance level（km/h）：	209
Installation Height（m）：	4-5
Installation Distance（m）：	12-15
Irradiation Area（m²）：	75

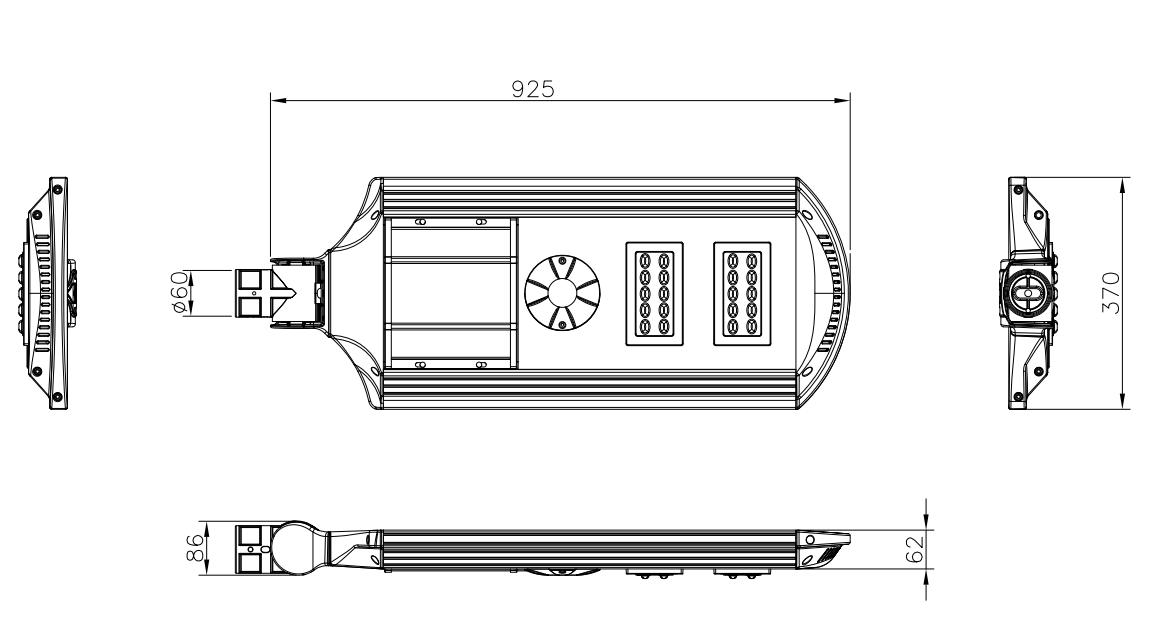

1.2 Product Dimension：（mm）

1.3 Distribution Diagram

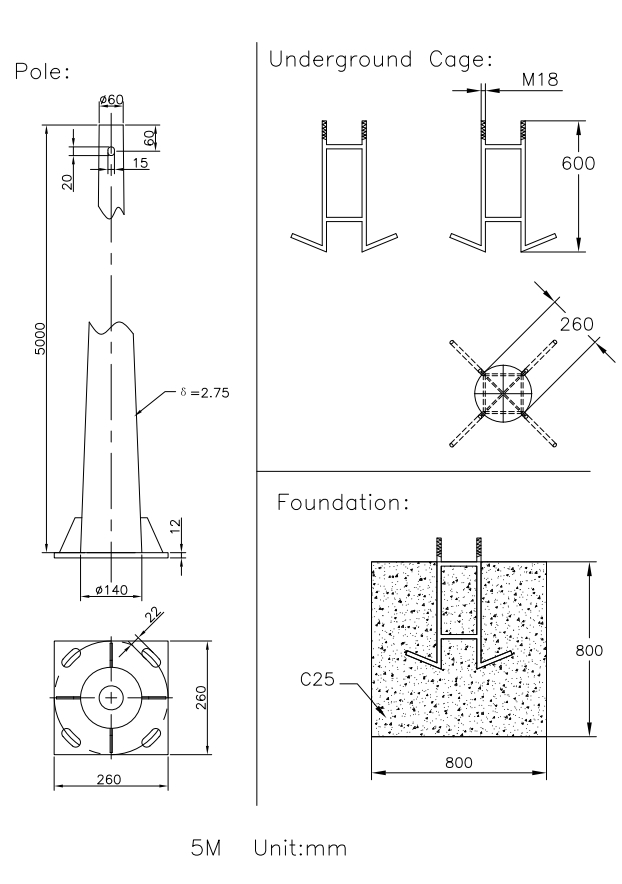

1.4 Light Pole Sketch（5m）

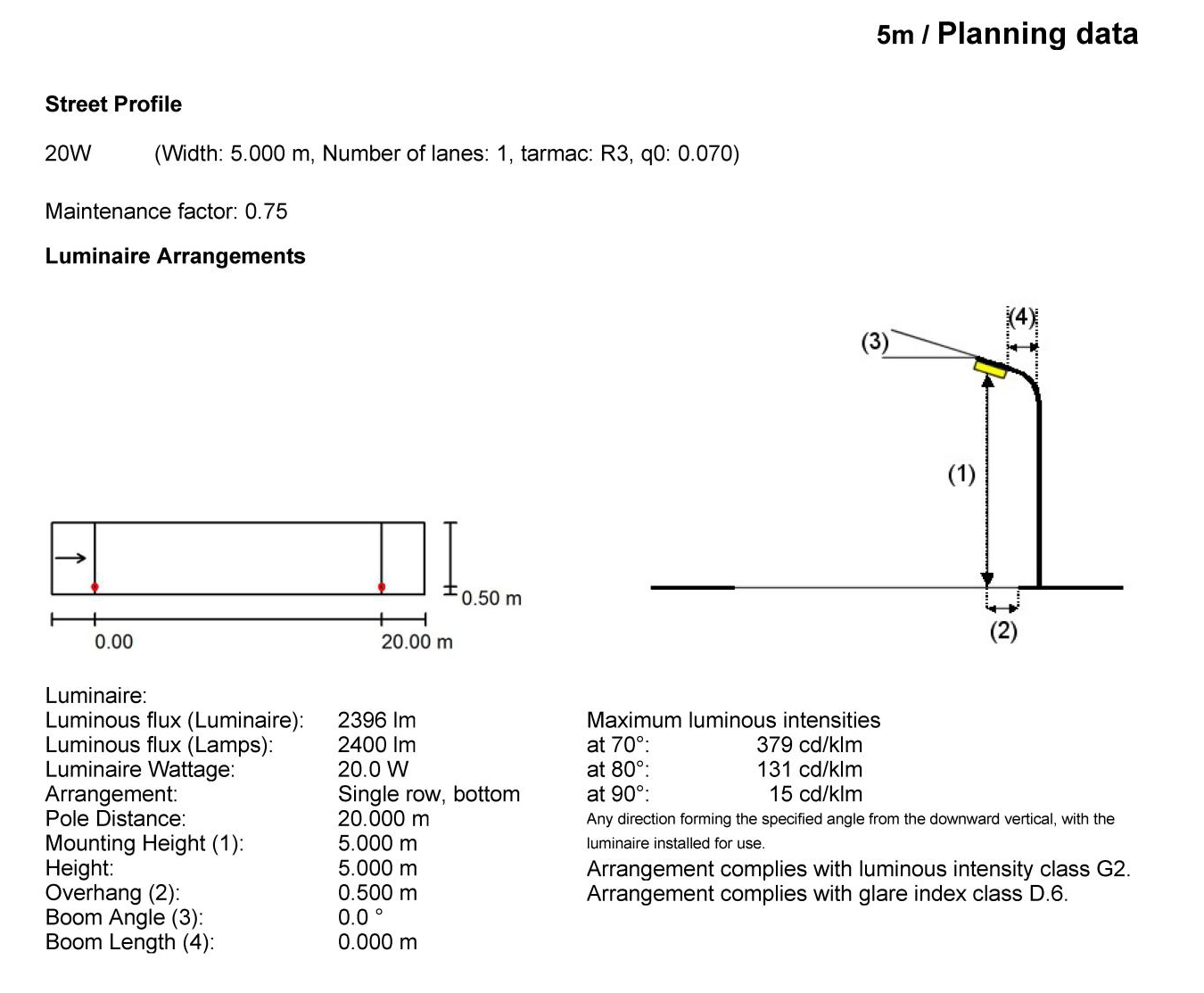

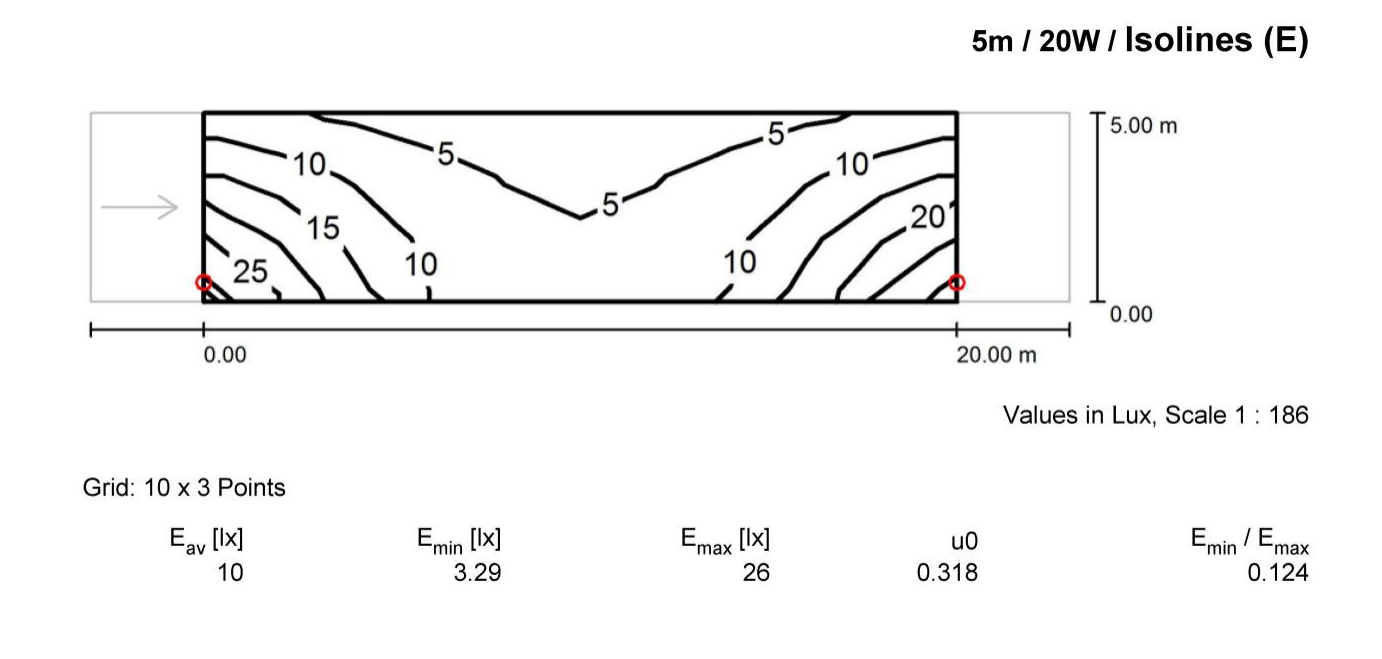

1.5 20W Illumination Simulation-5m

2 Package

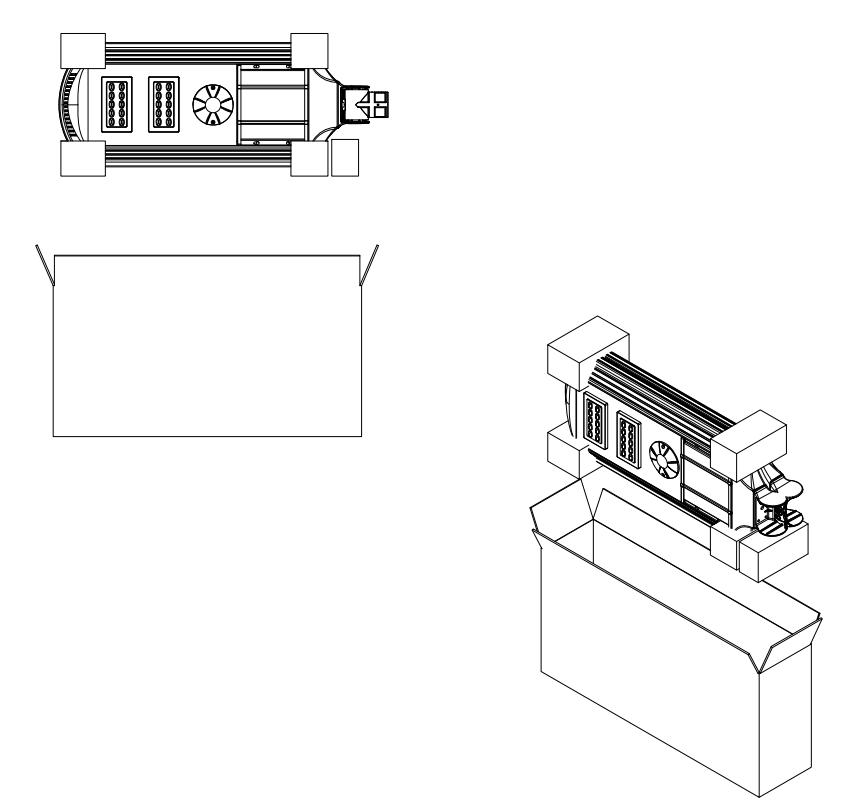

2.1 Package Sketch

2.2 Package List

Item	Products	Unit	Quantity	Note
1	20W Solar Street Light	PCS	2
2	6mm Allen Wrench	PCS	1	2%
3	Installation Instruction	PCS	1
4	Certification of Approval	Sheet	1
5	Test Report	PCS	1

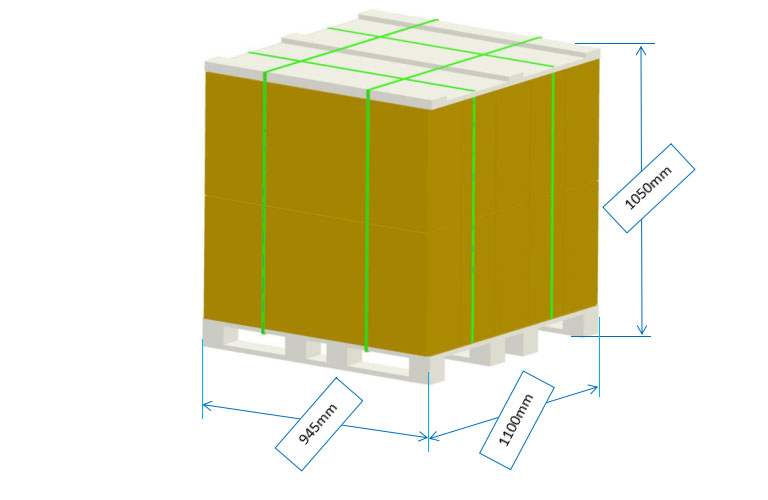

2.3 Pallet Sketch
Pallet Size：945×1100×120mm
Goods with Pallet Size：945×1100×1050mm
Quantity：10Boxes×2pcs/Box=20pcs
