Europe style for Ip66 Solar Led Street Light - C95 15W SMD Specification – Suntisolar Detail:

1.1 Technical Parameters

Model：	XT595SETY15-D5
LED Quantity：	24 Pcs 5050
Module Quantity (pcs)：	1
Power：	15W
Solar Panel：	Monocrystalline Silicon 18V/22W
Battery：	Grade A Lithium Ion Battery 10Ah/12V
Adjustable Angle of Module(±10°)：	Yes
Control Mode：	Light Control+Time Control
Working time under full power：	12h
Working time under intelligent power：	84h
Charging time(1000W/m2)	6h
On-off threshold level：	on≦8LUX, OFF≧10LUX
Secondary lighting distribution：	PC
Beam Angle：	C0~180 140°/ T90~270 70°
Protection Grade：	IP65
Photoelectric Parameter：
Color Temperature(K):	3,000-6,500K
CRI(Ra):	70
Lumens(lm):	1,800-2,100lm
Intelligent Mode:	Yes
Working under rainy day:	7-10 Days
Package:
Net Weight (kg):	8.0kg
Gross Weight (kg):	18.0kg (2pcs/box)
Product Dimension(mm):	595×490×95mm±5%
Package Dimension(mm)：	660×285×550mm±5%
Quantity in 20/40 Feet Container	420/1,152PCS
Environmental Temperature：
Discharging Temperature (℃)：	-20～60
Charging Temperature (℃)：	-20～60
Storage Temperature (℃)：	0～45
Installing Parameter：
Diameter of Pole：	Ø68mm
Screw Fixation：	Yes
Wind resistance level (km/h)：	209
Installation Height (m)：	3-4
Installation Distance (m)：	9-12
Irradiation Area(m2)：	48

1.2 Product Dimension (mm)

1.3 Distribution Diagram

1.4 Light Pole Sketch (3m)

微信图片_20190330143940
1.5 15W Illumination Simulation-3m

微信图片_20190330144059

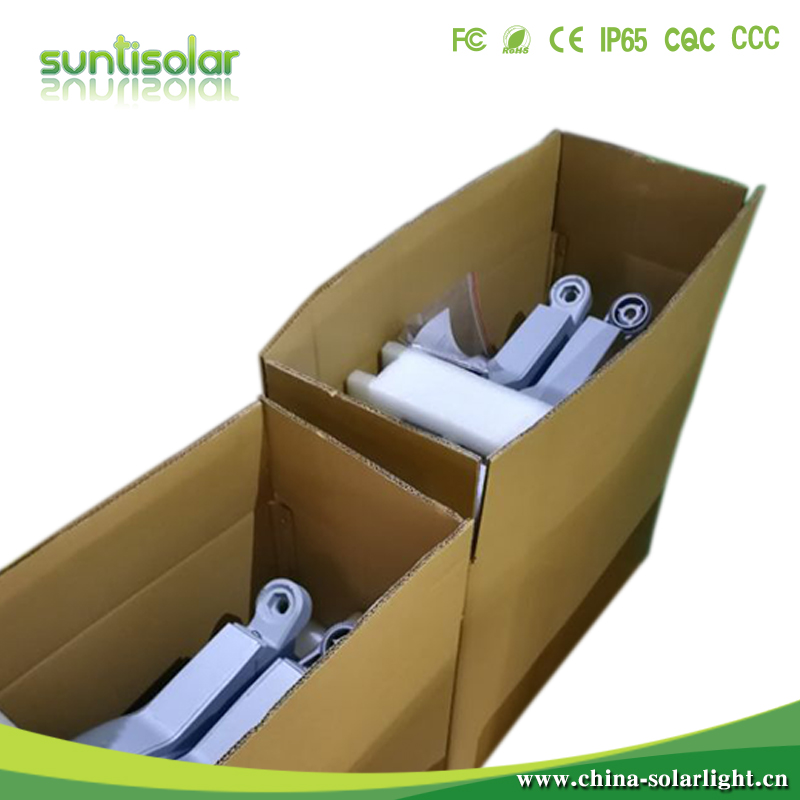

2 Package
2.1 Package Sketch

2.2 Package List

Item	Products	Unit	Quantity	Note
1	15W Solar Street Light	PCS	2
2	6mm Allen Wrench	PCS	1	2%
3	14mm Allen Wrench	PCS	1	2%
4	Installation Instruction	PCS	1
5	Certificate of Approval	Sheet	1
6	Test Report	PCS	1

2.3 Pallet Sketch
Pallet Size: 1,300×1,100×115mm
Goods with Pallet Size: 1,300×1,100×1,260mm
Quantity: 16 Boxes×2pcs/Box=32Pcs

微信图片_20190330144129
