Factory wholesale Outdoor Solar Lights - C61 120W SMD Specification – Suntisolar Detail:

1.1 Product Parameter

Model：	XT1590SELD120-D5
LED Quantity：	30 PCS 5050
Module Quantity (pcs)：	2
Power：	120W

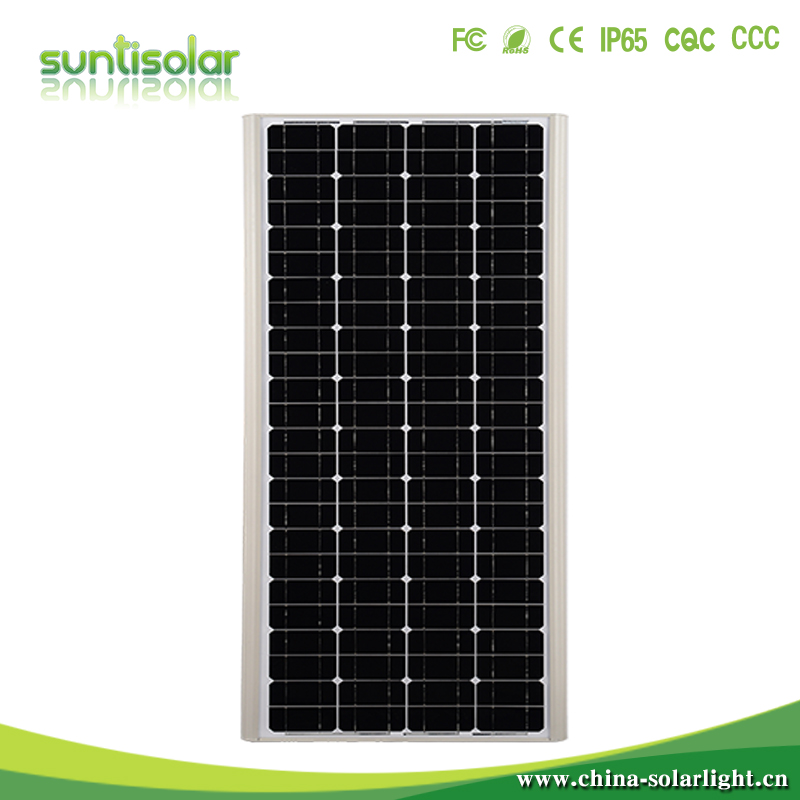

Solar Panel：	Monocrystalline Silicon 36V/140W
Battery：	Grade A Lithium Ion Battery 27.5Ah/24V
Adjustable Angle of Module(±10°)：	Yes
Contrtol Mode：	Light Control+Time Control
Working time under full power：	12h
Working time under intelligent power：	84h
Charging time（1000W/m2）	6h
On-off threshold level：	on≦8LUX，OFF≧10LUX
Secondary lighting distribution：	PC
Beam Angle：	C0~180 140°/ T90~270 80°
Protection Grade：	IP65
Photoelectric Parameter：
Color Temperature(K)：	3000-6500K
CRI(Ra)：	70
Lumens(lm)：	11000-12000lm
Intelligent Mode:	Yes
Working under rainy days：	7-10 Days
Package：
Net Weight((kg)：	27.5kg±5%
Gross Weight (kg)：	57.0kg±5%(2pcs/box)
Product Dimension (mm)：	1590×555×61mm ±5%
Package Dimension(mm)：	1650×225×610mm±5%
Quantity in 20/40 Feet Container(Accessories)	170/448PCS(With Pallet)
Environmental Temperature：
Discharging Temperature (℃)：	-20～60
Charging Temperature (℃)：	-20～60
Storage Temperature (℃)：	0～45
Installing Parameter：
Diameter of Pole：	Ø80mm
Screw Fixation：	Yes
Wind resistance level(km/h)：	209
Installation Height (m)：	11-12
Installation Distance（m)：	33-36
Irradiation Area（m2）	432

1.2 Product Dimension：（mm）

1.3 Light Distribution

1.4 Light Pole Sketch

微信图片_20190330140959
1.5 120W Illumination Simulation-12m

微信图片_20190330141036

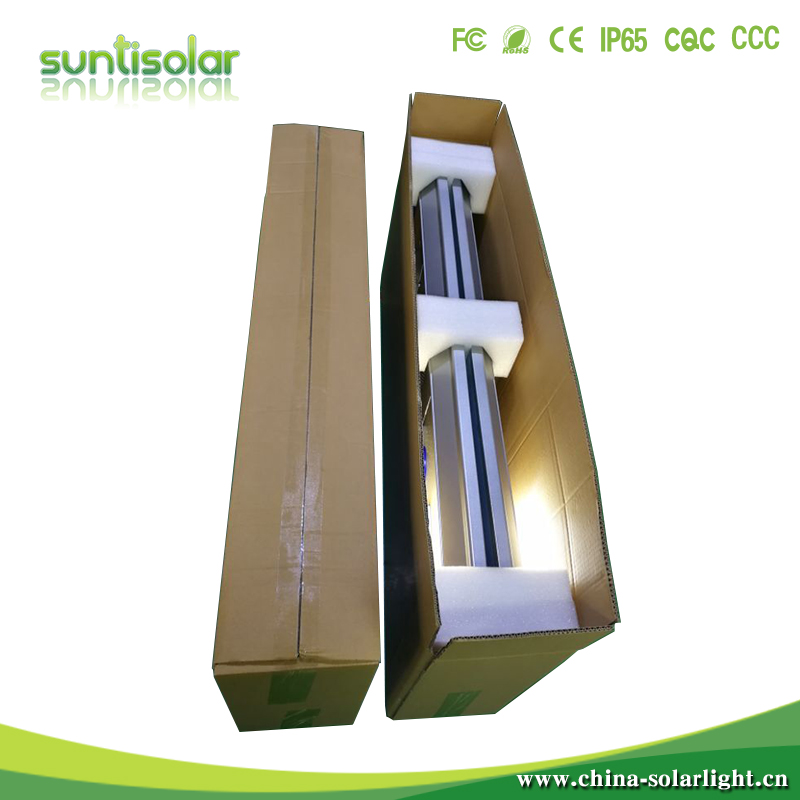

2 Package
2.1 Package Sketch

2.2 Package List

Item	Products	Unit	Quantity	Note
1	80W Solar Street Light	PCS	2
2	6mm Allen Wrench	PCS	1	2%
3	Installation Instruction	PCS	1
4	Certificate of Approval	Sheet	1
5	Test Report	PCS	1

2.3 Pallet Sketch
Pallet Size：1650×1100×115mm
Goods with Pallet Size：1650×1100×1380mm
Quantity：10 Boxes×2pcs/Box=20Pcs

微信图片_20190330141057
