Yantai Xutai New Energy Technology Co., Ltd. is one of the most reliable manufacturers and suppliers of motion sensor solar street light in China, featured by quality products and good service. With abundant experience, we warmly welcome you to buy motion sensor solar street light made in China here from our factory.
Product description

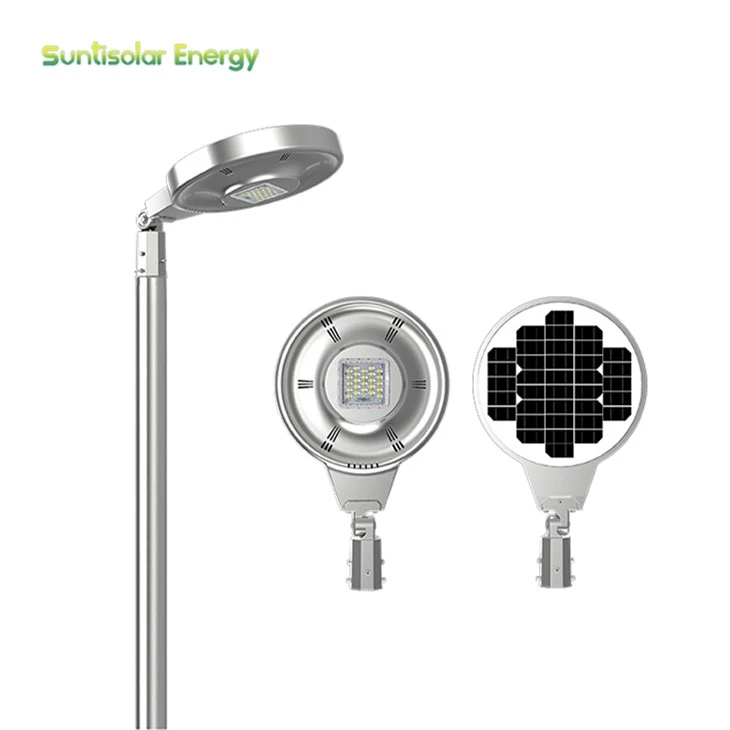

The microwave motion sensor detects moving objects by emitting high-frequency electromagnetic waves. It triggers full brightness for the 15W solar round strip light when pedestrians approach, and switches to dim mode when no movement is detected. It is barely affected by temperature, dust or thin obstacles, This function is ideal for residential areas where high brightness is unnecessary late at night. It maintains low standby brightness and only brightens when people pass by, reducing light pollution and saving solar power.
Product Advantage
01
Extend night lighting runtime by 40–60% by switching to dim standby mode when no people pass by.
02
Reduce light pollution, ideal for residential areas requiring low brightness late at night.
03
Lower battery consumption, slowing down battery aging and prolonging the service life.
04
Improve user experience: full brightness activates automatically when pedestrians approach.
Technical Parameters
|
Model |
XT595SETY15-D5 |
|
LED Quantity |
24 Pcs 5050 |
|
Module Quantity (pcs) |
1 |
|
Power |
15W |
|
Solar Panel |
Monocrystalline Silicon 18V/22W |
|
Battery |
Grade A Dynamic LiFe PO4lithium battery 15AH/12.8V( =192Wh)
|
|
Adjustable Angle of Module(±10°) |
Yes |
|
Control Mode |
Light Control+Time Control |
|
Working time under full power |
12h |
|
Working time under intelligent power |
84h |
|
Charging time(1000W/m2) |
6h |
|
On-off threshold level |
on≦8LUX, OFF≧10LUX |
|
Secondary lighting distribution |
PC |
|
Beam Angle |
C0~180 140°/ T90~270 70° |
|
Protection Grade |
IP66 |
|
Photoelectric Parameter |
|
|
Color Temperature(K) |
3,000-6,500K |
|
CRI(Ra) |
70 |
|
Lumens(lm) |
1,800-2,100lm |
|
Intelligent Mode |
Yes |
|
Working under rainy day |
7-10 Days |
|
Package |
|
|
Net Weight (kg) |
8.0kg |
|
Gross Weight (kg) |
18.0kg (2pcs/box) |
|
Product Dimension(mm) |
595×490×95mm±5% |
|
Package Dimension(mm) |
660×285×530mm±5% |
|
Quantity in 20/40 Feet Container |
532/1432PCS |
|
Environmental Temperature |
|
|
Discharging Temperature (℃) |
-20～60 |
|
Charging Temperature (℃) |
-20～60 |
|
Storage Temperature (℃) |
0～45 |
|
Installing Parameter |
|
|
Diameter of Pole |
Ø68mm |
|
Screw Fixation |
Yes |
|
Wind resistance level (km/h) |
209 |
|
Installation Height (m) |
3-4 |
|
Installation Distance (m) |
9-12 |
|
Irradiation Area(m2) |
48 |
Product Dimension (mm)
Installing Effect Diagram
Package
Package Sketch
2 stand alone solar street light LED are packed inside of Carton box.
Pallet Sketch
Goods with Pallet Size: 660×1,120×2250mm
We have two type of motion sensor available to choose
PIR (Passive Infrared) sensor detects human body heat. It has ultra-low power consumption, lower cost, but its performance is affected by ambient temperature. It works well for solar lights in most scenic walkways.
Microwave motion sensor sends high-frequency electromagnetic waves to detect movement. It is stable in extreme hot/cold weather and can sense through thin non-metal barriers. Its power draw and price are higher. It fits residential areas where strong light is not needed late at night, with fewer false failures caused by temperature shifts.
Dual sensor (PIR + Microwave) is available for higher accuracy and less false triggering.
FAQ
Can I choose between PIR and microwave motion sensor for this solar street light?
Yes. PIR is recommended for scenic walkways for lower power consumption. Microwave is better for residential zones with large temperature fluctuation. Dual PIR+microwave sensor is also available.
What is the standby brightness mode of the solar street light?
It stays at low dim brightness/off at rest. When motion is detected, it switches to full brightness automatically, which reduces light pollution for residential neighborhoods.
Can we adjust the hold-on time after the motion sensor detects movement?
Yes. The lighting hold time after motion trigger can be customized, to meet different requirements of residential and scenic projects.
What is the warranty for this product?
We offer 5 years warranty for the whole product.
What's the weight of this product?
Answer:The net weight of this product is 8 kg.
