40W led light specification date
[Specification]

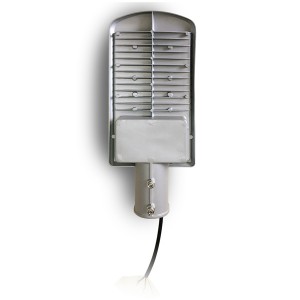

40W LED solar street light
Application
- [Road lighting (urban roads, streets, highways, etc.)
- District lighting (municipal square, commercial area, parking lot, etc)
Detailed：
| Product Parameter | |
|
Model |
XT391LD40 |
|
LED Quantity |
40pcs 3030 |
|
Module Quantity( pcs） |
1 |
|
Power：（W） |
40W |
|
Out cable length Wire length |
0.15-0.2m |
|
Input voltage range （V） |
AC 100-277 |
|
Frequency (Hz) |
50/60 |
|
Power Efficiency |
90% |
|
Power factor |
0.95 |
|
Secondary light distribution material: |
PC |
|
Lamp color |
grey |
|
Glare threshold (T) |
≦10 |
|
Protection against electric shock |
I class |
|
Electrical insulation rating |
CLASS II |
|
Beam angle（°） |
C0~180 140°/ T90~270 70°
|
|
Protection level |
IP65 |
|
Photoelectric Parameter： |
|
|
Color Temperature(K)： |
6000-6500 |
|
CRI(Ra)： |
70 |
|
Lumens(lm)： |
4000-4400
|
|
Package： |
|
|
Net Weight((kg)： |
1.1kg±5% |
|
Gross Weight (kg)： |
8kg±5%(6pcs/box)
|
|
Product Dimension (mm)： |
391×162×67mm±5% |
|
Package Dimension(mm)： |
485×205×330mm±5% |
|
Quantity in 20/40 Feet Container |
3960/10080PCS（pallet） |
| Environmental Temperature： | |
|
Working Temperature (℃)： |
-40～60 |
|
Storage Temperature（℃）： |
0～45 |
|
Installing Parameter： |
|
|
Diameter of Pole： |
Ø50-55mm |
| Wind resistance level(km/h)： | 209 |
|
Installation design (m) |
4-5 |
|
Installation spacing (m) |
16-20 |
|
Irradiation area (m2) |
100 |
Appearance dimension drawing
Note：Container dimension is as below ：
20 Feet Container：5890×2342×2388mm，Entrance Height is 2280；
40HQ：：12017×2342×2693mm，Entrance Height is 2580.
