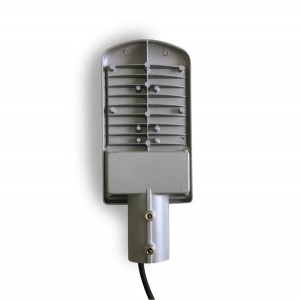

25W led light specification date


  • FOB Price: US $0.5 - 9,999 / Piece
  • Min.Order Quantity: 100 Piece/Pieces
  • Supply Ability: 10000 Piece/Pieces per Month
  • Product Detail

    [Specification]

    25W LED solar street light

    Application

    [Road lighting (urban roads, streets, highways, etc.)

    - District lighting (municipal square, commercial area, parking lot, etc)

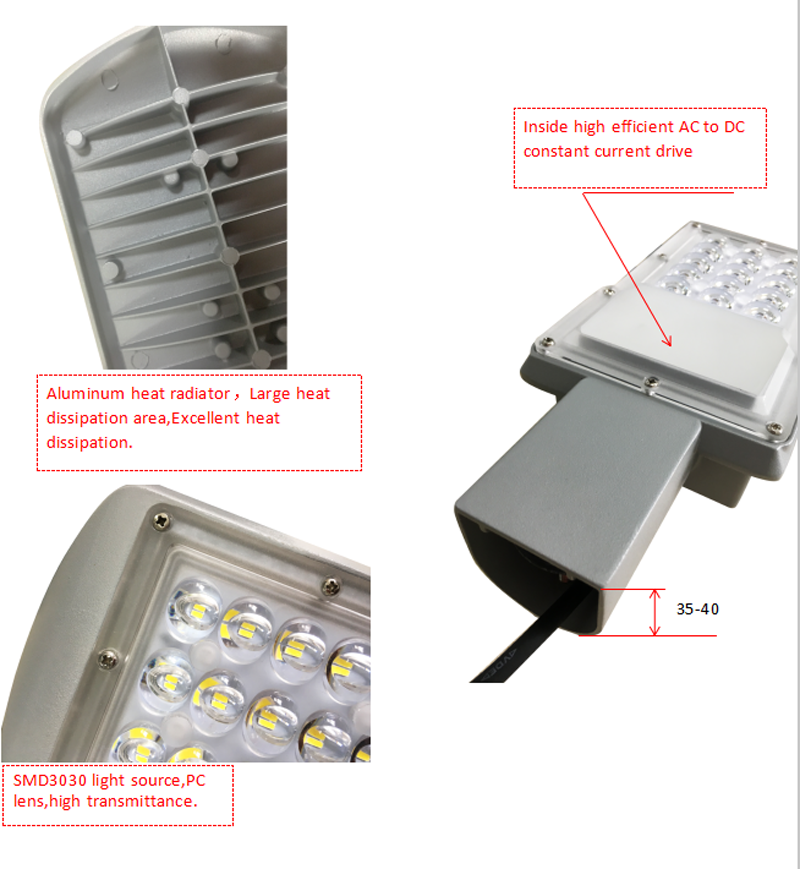

     Detailed:

    1 (1)

    Product Parameter

    Model

    XT261LD25

    LED Quantity

    24pcs3030

    Module Quantity( pcs)

    1

    Power:(W)

    25W

    Out cable length

    Wire

    length

    0.15-0.2m

    Input voltage range (V)

    AC 100-277

    Frequency (Hz)

    50/60

    Power Efficiency

    90%

    Power factor

    0.95

    Secondary light distribution material:

    PC

    Lamp color

    Grey

    Glare threshold (T)

    ≦10

    Protection against electric shock

    I class

    Electrical insulation rating

    CLASS II

    Beam angle(°)

    C0~180 140°/ T90~270 70°



    Protection level

    IP65

    Photoelectric Parameter

    Color Temperature(K):

    6000-6500

    CRI(Ra):

    70

    Lumens(lm):

    2500-2750



    Package:

    Net Weight((kg):

    0.5kg±5%

    Gross Weight (kg):

    6kg±5%(10pcs/box)



    Product Dimension (mm):

    261×110×56mm±5%

    Package Dimension(mm):

    340×450×120mm±5%

    Quantity in 20/40 Feet Container

    5760/14040PCS(pallet)

    Environmental Temperature:

    Working Temperature (℃):

    -40~60

    Storage Temperature(℃):

    0~45

    Installing Parameter:

    Diameter of Pole:

    Ø35-40mm

    Wind resistance level(km/h):

    209

    Installation design (m)

    3-4

    Installation spacing (m)

    12-16

    Irradiation area (m2)

    64

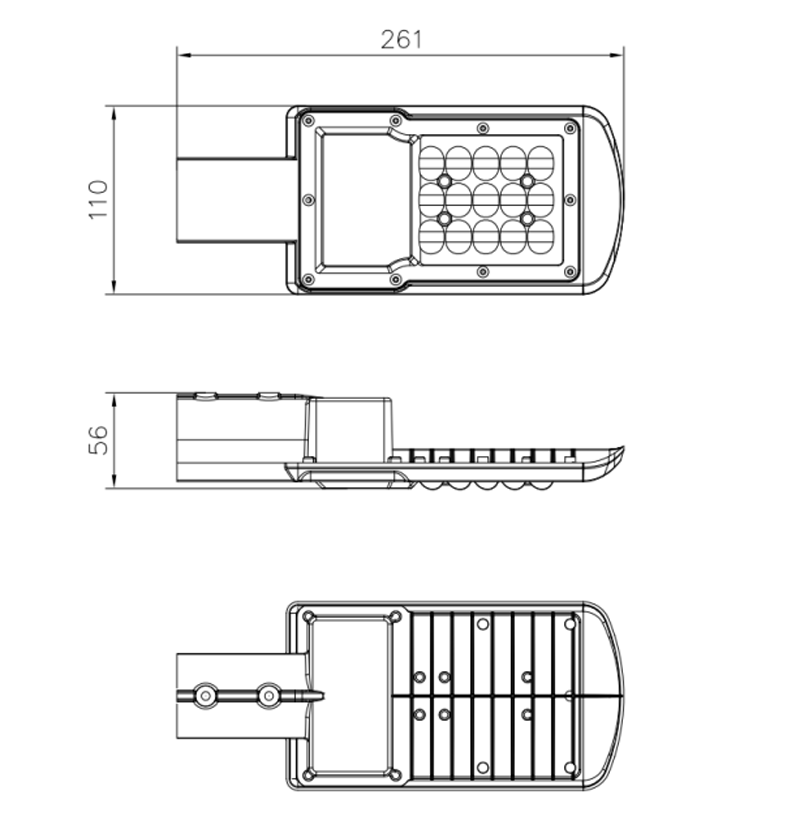

    Appearance dimension drawing

    1 (2)

    Note:Container dimension is as below :

    20 Feet Container:5890×2342×2388mm,Entrance Height is 2280;

    40HQ:12017×2342×2693mm,Entrance Height is 2580.
