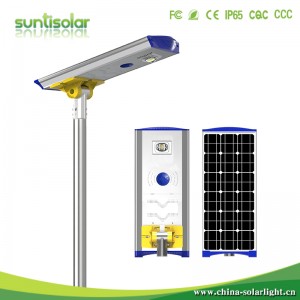

Self Cleaning Solar Street Light 120W


  • FOB Price: US $0.5 - 9,999 / Piece
  • Min.Order Quantity: 100 Piece/Pieces
  • Supply Ability: 10000 Piece/Pieces per Month
  • Product Detail

    1. Product Production

    1



    2. Product Production

    Model XT1888SELD120-SC
    LED Quantity 40 PCS 5050
    Module Quantity (pcs) 2
    Power  120W
    Solar Panel Monocrystalline Silicon of 36V/140W
    Battery Grade A Lithium Ion Battery of model 32650 36Ah/24V
    Adjustable Angle of Module (±15°) Yes
    Contrtol Mode Light Control+Time Control
    Working time under full power 12h
    Working time under smart power control 84h
    Charging time (1,000W/m2) 6h
    On-off threshold level on8LUX, OFF10LUX
    Material for secondary lighting distribution PC
    Beam Angle C0~180 150°/ T90~270 80°
    Protection Grade IP66
    Photoelectric Parameter
    Color Temperature (K) 3,000-6,500K
    CRI (Ra) 70
    Lumens (lm) 12,000-14,000lm
    Intelligent Mode Yes
    Working under rainy days 7 to 10 days
    Package
    Net Weight 36kg±5%
    Gross Weight 74kg±5%(2pcs/box)
    Product Dimension 1888 *548*85mm±5%
    Package Dimension 1,905*252*590mm±5%
    Quantity in 40 Feet Container 448PCS
    Environmental Temperature
    Discharging Temperature -2060
    Charging Temperature -2060
    Storage Temperature 045
    Installation
    Diameter of Pole Ø89mm
    Screw Fixation YES
    Wind resistance level(km/h) 209
    Installation Height (m) 10-11
    Installation Distance(m) 30-33
    Irradiation Area(m2): 363

    1.3 Product Dimension


    1.4 IES Distribution

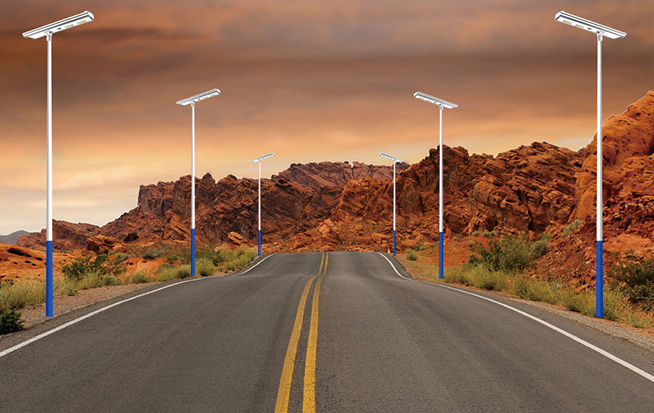

    1.5 Installation Effect

    图片3 图片4
