Z58 60W SMD Specification


  • FOB Price: US $0.5 - 9,999 / Piece
  • Min.Order Quantity: 100 Piece/Pieces
  • Supply Ability: 10000 Piece/Pieces per Month
  • Model:: XT965SELD60
  • LED Quantity:: 96 PCS 3030
  • Module Quantity (pcs):: 4
  • Power:: 60W
  • Solar Panel:: Monocrystalline Silicon 60W
  • Battery:: Grade A Lithium Ion Battery 384Wh
  • Product Detail

    1 Product Introduction

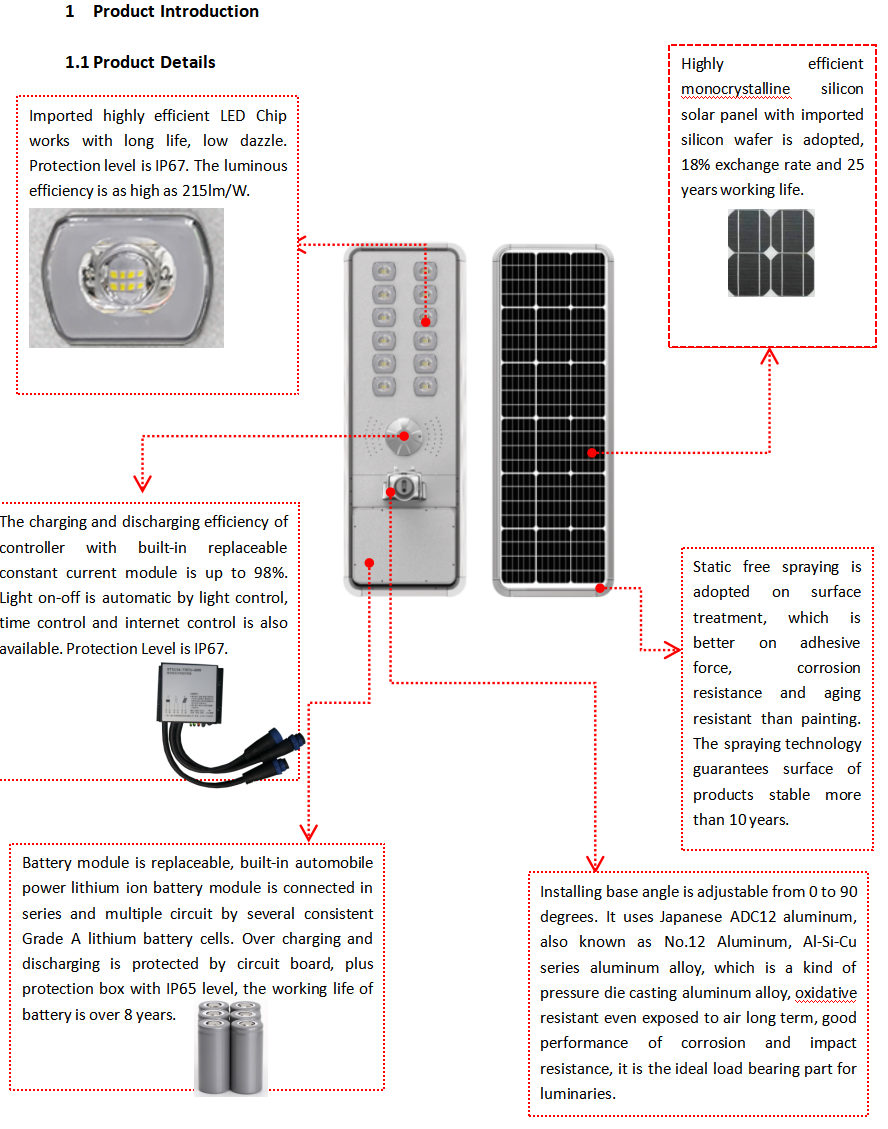

    1.1Product Detail

    1

    1.2 Product Description



    1.2.1 It is a creative product of green, energy saving and environmentally friend solar street light.



    1.2.2 With new structure and easy installation, it could be installed by untrained workers within 5 minutes.



    1.2.3 With several times longer working life than separate solar street light and lead acid battery luminaries, it is the forerunner of solar street light.



    1.2.4 With modular design, the product is independently sealed and water proof, free of maintenance.



    1.2.5 It adopts 3030 light source with maximum brightness, and glue filling technique inside lens. The luminous efficiency is up to 215lm/W which is increased by more than 30% compared with existing module. This makes it the brightest LED Module in the market. Protection grade is IP67, even could be used directly under water. Also benefiting from the good protection and heat radiation, lumen depreciation is almost 0 after 6000 hours, and lumen maintenance is over 80% after 50,000 hours.



    1.2.6 Imported aging resistant plastic particle is adopted for secondary light distribution, glare threshold lower than 10%, even degree over 0.7. No light spot or yellow circle on road.



    1.2.7 Highly efficient imported mono crystalline silicon guarantees working life over 25 years, with 22% silicon exchange rate and 18% complete solar panel exchange rate.



    1.2.8 Constant current charging and discharging management module uses high quality components from international brand like ST and IR, makes sure working life over 50000 hours. Lithium battery is equipped with automatic activation and low temperature protection function. With advanced MPPT technology, tracking efficiency is not less than 99.8%, DC-DC exchange rate is 98%. 4 periods time control mode can meet different demands from customers. Off line 2.4G programmable remote control, communication distance is 50m. Parameters, operating mode and electric quantity could be managed by mobile APP or computer software. Protection grade is IP67.



    1.2.9 Built-in grade A powerful lithium ion battery, the battery cell is strictly sorted. Deviation between cells is lower than 4mΩ+5mV. Strict grouping promises consistency of internal resistance, charging and discharging rate reaches 99%. Good heat radiation aluminum is used for external protection battery box; protection grade is IP67, guarantees working life over 8 years.



    1.2.10 Customized aviation level water proof plug, 3C certificates for sheathed cable, Flame resistant PA66 is used on joint, and certified with CQC. User friendly fool proof design for plug in unit prevents electronic components from burning out by reversed connection. Automatic welded internal joint prevents insufficient soldering. Safety performance complies with GB70000.1-2015 standard, resistant from 120 degree ball pressure; heat resistant, flame resistant, and tracking test resistant, working life is over 10 years.



    1.2.11 Installing base angle is adjustable from 0 to 90 degrees. It uses Japanese ADC12 aluminum, also known as No.12 Aluminum, Al-Si-Cu series aluminum alloy, which is a kind of pressure die casting aluminum alloy, oxidative resistant even exposed to air long term, good performance of corrosion and impact resistance, it is the ideal load bearing part for luminaries.



    1.2.12 Static free spraying is adopted on surface treatment, which is better on adhesive force, corrosion resistance and aging resistant than painting. The spraying technology guarantees surface of products stable more than 10 years.



    1.3 Product Parameter



    1.3 Technical Parameters
    Model XT965SELD60



    LED Quantity 96 PCS 3030
    Module Quantitypcs): 4
    PowerW): 60W
    Solar PanelWp): Monocrystalline Silicon 60W
    BatteryAh): Grade A Lithium Battery 384Wh
    Adjustable Angle of Module±15°): Yes
    Control Mode:     Light Control+Time Control



    Working time under full powerh): 12h
    Working time under intelligent powerh): 36h
    Charging time1000W/m2 6h
    On-off threshold levelLUX): on≦8LUXOFF≧10LUX
    Secondary lighting distribution PC
    Beam Angle°): C0~180 140°/ T90~270 70°



    Protection Grade IP67

    Photoelectric Parameter

    Color TemperatureK): 3000-6500K
    CRIRa):   70
    Lumenslm): 7200-8400lm



    Intelligent Mode: Yes
    Working under rainy days 365 days
    Package
    Net Weightkg): 13.2kg±5%
    Gross Weightkg): 27.7kg±5%/1.05(2pcs/box)



    Product Dimensionmm): 965×385×65mm
    Package Dimensionmm): 995×165×430mm2 Pcs
    Quantity in 20/40 Feet Container:(No Pallet 800/2016PCS
    Environmental Temperature
    Discharging Temperature): -2060
    Charging Temperature): -2060
    Storage Temperature): 045
    Installing Parameter
    Diameter of Polemm): Ø60mm
    Screw Fixation:   Yes
    Wind resistance levelkm/h): 209
    Installation Heightm):

    6-7

    Installation Distancem): 18-20
    Irradiation Area(m2): 200

    1.4 Internet Control

    Z66-50W-SMD-Specification0-3

    This product is available for internet control and mobile APP remote control, one card one light with 360°direction far and fast communication, one to one control, one to many control and group control are all available.
    1. Remote Monitor: All lights could be monitored real time on the screen. Malfunction would be alarmed; position, time, fault type and operation record would be reported by screen.
    2. Remote control: Remote control strategy, including on-off time, time control mode, light control mode, could be done by computer in monitoring center. All lights, lights of one street or lights of one district are available to control separately.
    3. Single Light Control: Each light’s on-off and dimming could be controlled. And current, voltage, power, charging rate, discharging rate, internal temperature, signal intensity are all available to control.
    4. Fault Monitoring: The fault type could be monitored includes: Solar panel fault, LED Source fault, Battery fault and Controller fault. Alarm could be reported to administrator by email or other ways.
    5. Safety Monitoring: To monitor and analyze abnormal database, to judge if database were stolen maliciously.
    6. Illumination Set: Light control, time control and smart control are available. Light control could be set in 6 periods; illumination degree in different periods could be set up by time control.
    7. Data Statistics: Energy consumption calculation, light on rate statistics, fault statistics, light on time statistics and historical data of each lamp could be checked. It provides strong data support for scientific decision.
    8. Mobile APP Control: Solar street light management, including light on-off and dimming control, real time data checking and historical data are available to check by mobile APP.

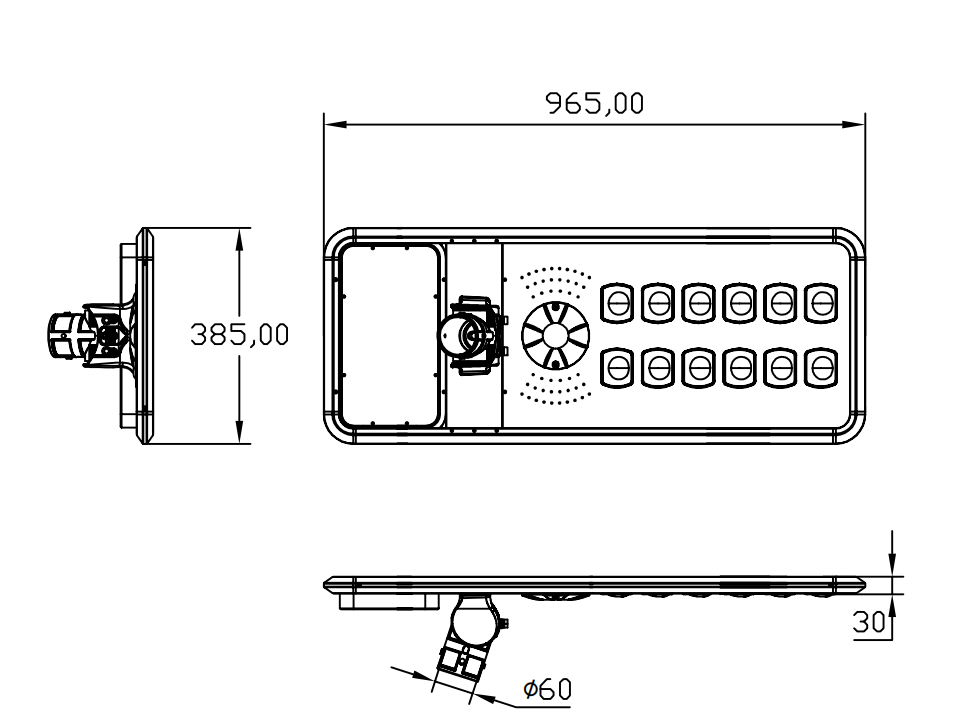

    1.5 Product Dimension:(mm)


    1.6 Light Distribution

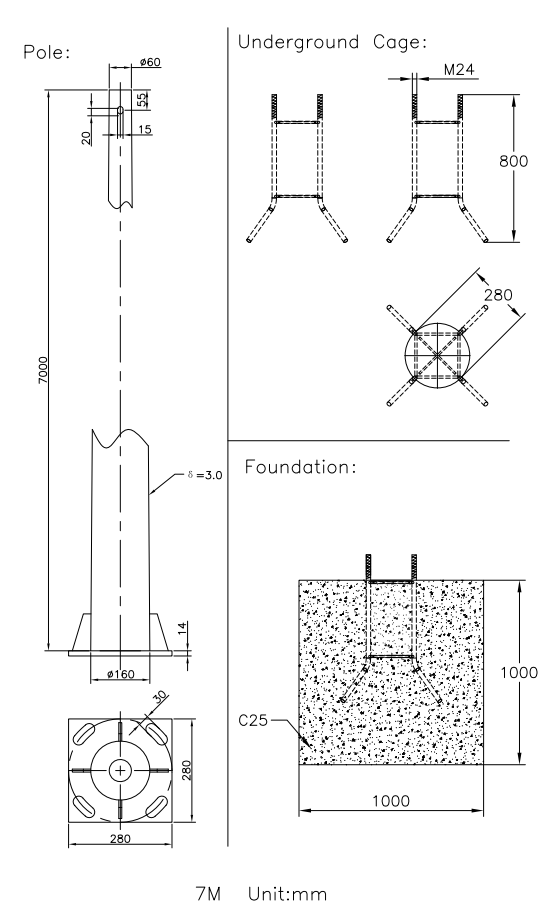

     1.7 Light Pole Sketch

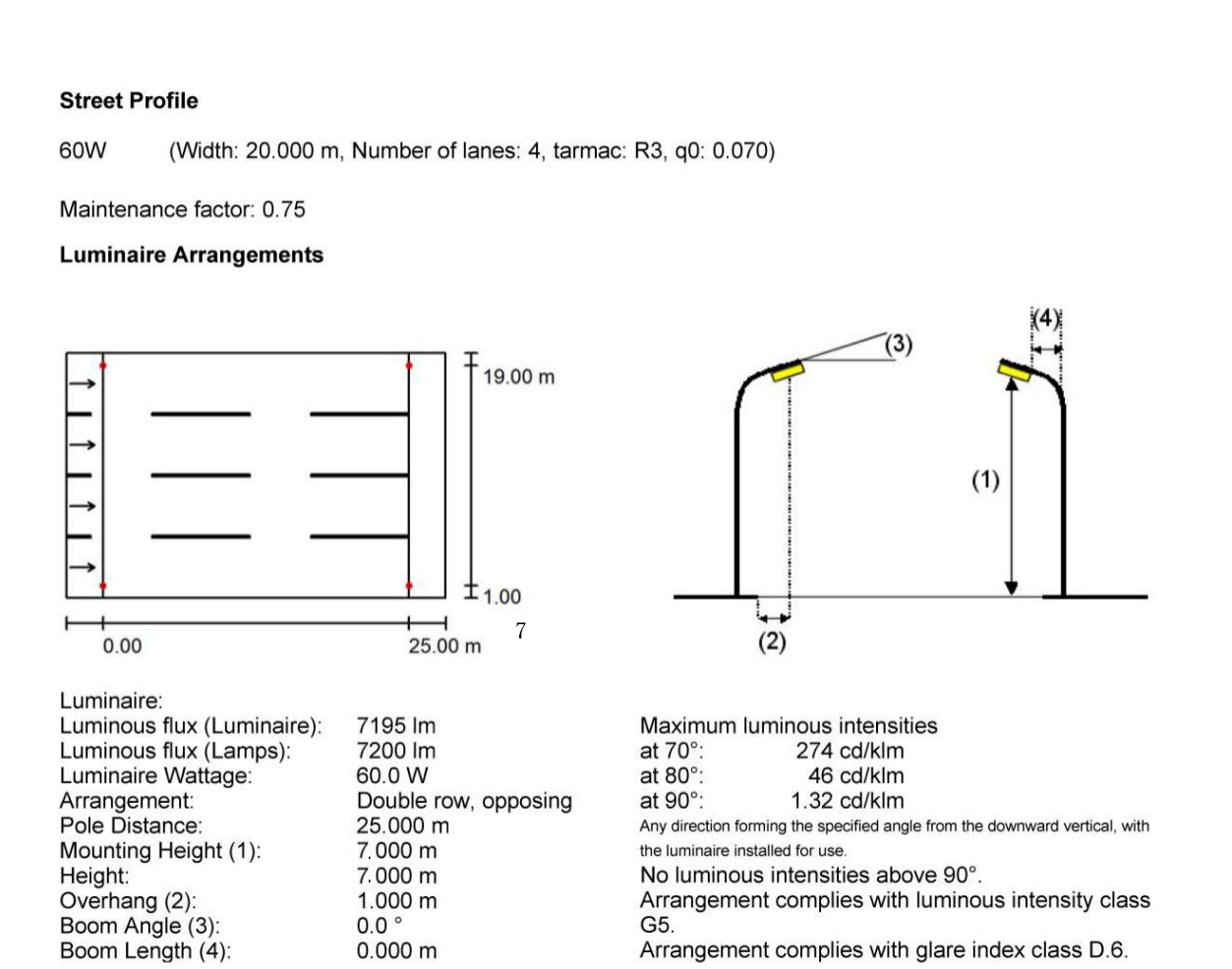

    1.9 60W Illumination Simulation-7m


    2 Package

    2.1 Package Sketch

    2.2 Package List

    Item

    Products

    Unit

    Quantity

    Note

    1

    60W Solar Street Light

    PCS

    2

    2

    6mm Allen Wrench

    PCS

    1

    2%

    3

    Installation Instruction

    PCS

    1



    3 Working Environment

    Protection Grade is IP65,do not use under environment over the standard.
    Working Temperature is -20℃~60℃。
    Classification of wind resistance is Grade 12 Typhoon, higher grade typhoon could damage the products.

    4 Notes

    If product installed in north earth, solar panel should be installed oriented to south, if product installed in south earth, solar panel should be installed oriented to north.

    Z66-50W-SMD-Specification0-13
    Please avoid product shielded by construction or tree, which would affect charging efficiency of solar panel, and shorten product working time.
    Please avoid products illuminated by advertising board or other lanterns, under which condition the SSL would judge it was day time and not work with night mode.
    Please peel off the protective film on solar panel, put it under outdoor natural light, the product would be activated and come to charging state automatically.
    Product should be charged every 6 month if it were stored long term. Put it outdoor with solar panel oriented to sunlight for 6 to 7 hours charging.
    Please operate strictly following product instruction.
    Please do not take product apart by layman, which could cause product damaged.
    Please do not cover the lighting side by paper or fabric. Keep product away from inflammable.
    External electric signal is prohibited to introduced to internal luminary, which could be permanently damaged by external signal.

    5 Trouble Shooting

     Luminary does not work after installation?
    a Confirm if the luminary is turned on.
    b If there were no switch, confirm if the protective film on solar panel had been peeled off.
    c Make sure luminary were installed in daylight so that the solar panel is activated by sunlight, then it can work in night.
    d Please keep away from other light illuminating if there were advertising board or other lanterns above or beside the luminary. The luminary would not work under other lighting illumination.
     Part of luminaries don’t work?
    Luminary installed near to night, so the solar panel is not activated by sunlight. It would recover working next day.
     The brightness of luminary is low?
    Rated battery capacity is only 40% to 50% for long distance delivery. Brightness would recover after 2 or 3 days sunlight.

    6 Warranty

    If faulted product were used following instruction, we will provide product replacement service according to the warranty item.
    Circumstances below are not in warranty range:
    6.1 Product fall down or damaged during transportation, malfunction caused by incorrect operation method of customer.
    6.2 Malfunction caused by fire, earthquake, flood, typhoon or other natural disaster.
    6.3 Operation violate to the setting condition, method of application and notes recorded in instruction.
    6.4 Suntisolar has the proprietorial right of replaced product.
    6.5 Maintenance beyond warranty period is charged.

    Note:Container dimension is as below :
    20 Feet Container:5890×2342×2388mm,Entrance Height is 2280mm;
    40HQ:12017×2342×2693mm,Entrance Height is 2580mm.
