Z86 40W SMD Specification
1.1 Product Parameter
| Model： | XT1025SELD40-D5 |
| LED Quantity： | 30 pcs 5050 |
| Module Quantity (pcs)： | 1 |
| Power： | 40W |
| Solar Panel： | Monocrystalline Silicon 18V/60Wp |
| Battery： | Grade A Lithium Ion Battery 25Ah/12V |
| Adjustable Angle of Module(±10°)： | yes |
| Contrtol Mode： | Light Control+Time Control |
| Working time under full power： | 12h |
| Working time under intelligent power： | 84h |
| Charging time（1000W/m2） | 6h |
| On-off threshold level： | on≦8LUX，OFF≧10LUX |
| Secondary lighting distribution： | PC |
| Beam Angle： | C0~180 140°/ T90~270 80° |
| Protection Grade： | IP65 |
|
Photoelectric Parameter： |
|
| Color Temperature(K)： | 3000-6500K |
| CRI(Ra)： | 70 |
| Lumens(lm)： | 4800-5600lm |
| Intelligent Mode: | yes |
| Working under rainy days： | 7-10 days |
| Package： | |
| Net Weight((kg)： | 15.4kg±5% |
| Gross Weight (kg)： | 32.4kg±5%(2pcs/box) |
| Product Dimension (mm)： | 1025×428×62mm±5% |
| Package Dimension(mm)： | 1075×227×495mm±5% |
| Quantity in 20/40 Feet Container(Accessories) | 324/816PCS（pallets) |
| Environmental Temperature： | |
| Discharging Temperature (℃)： | -20～60 |
| Charging Temperature (℃)： | -20～60 |
| Storage Temperature (℃)： | 0～45 |
| Installing Parameter： | |
| Diameter of Pole： | Ø60mm |
| Screw Fixation： | Yes |
| Wind resistance level(km/h)： | 209 |
| Installation Height (m)： | 6-7 |
| Installation Distance（m)： | 18-21 |
| Irradiation Area（m2） | 147 |

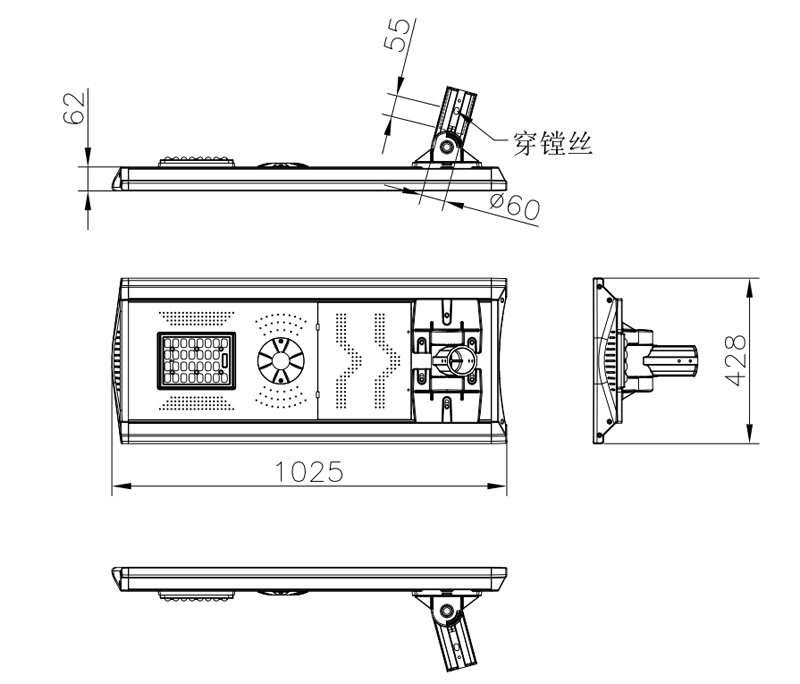

1.2 Product Dimension：（mm）
1.3 Light Distribution

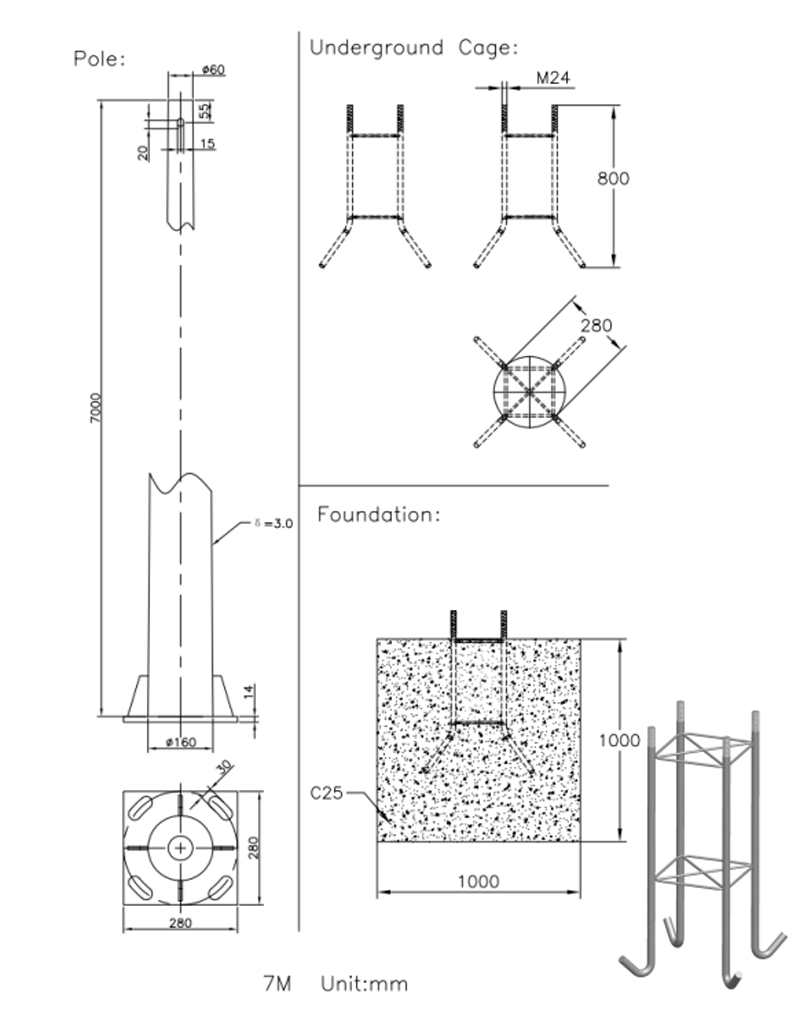

1.4 Light Pole Sketch

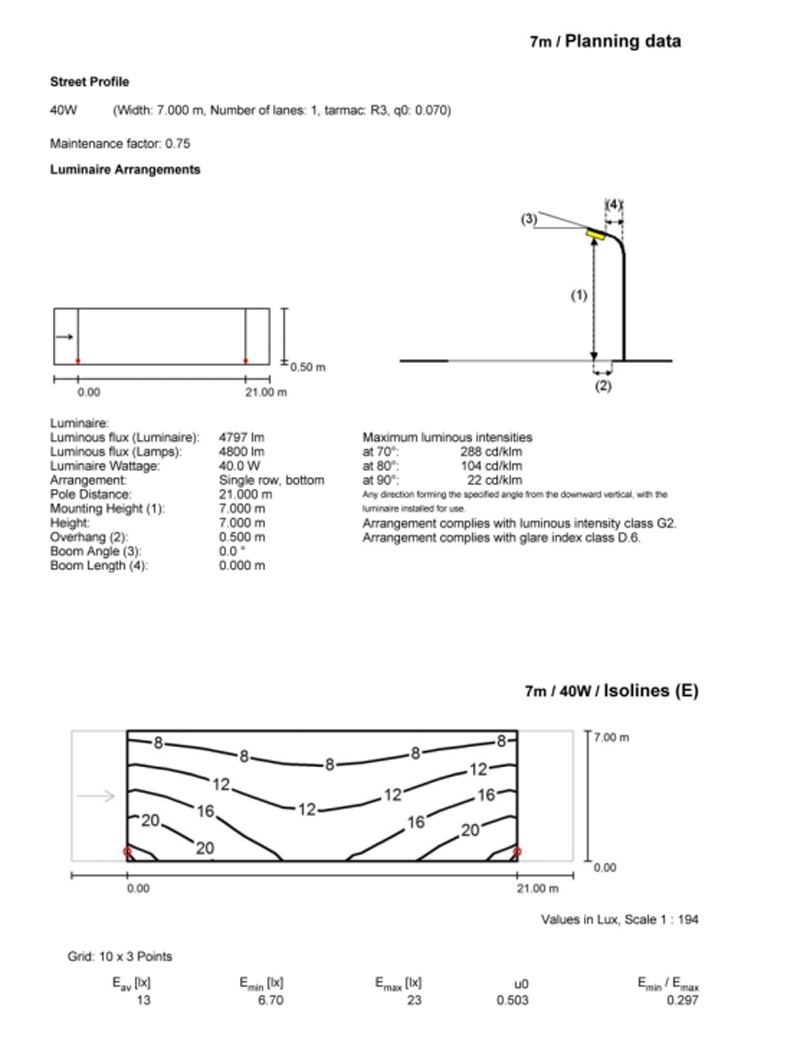

1.5 40W Illumination Simulation-7m
2 Package

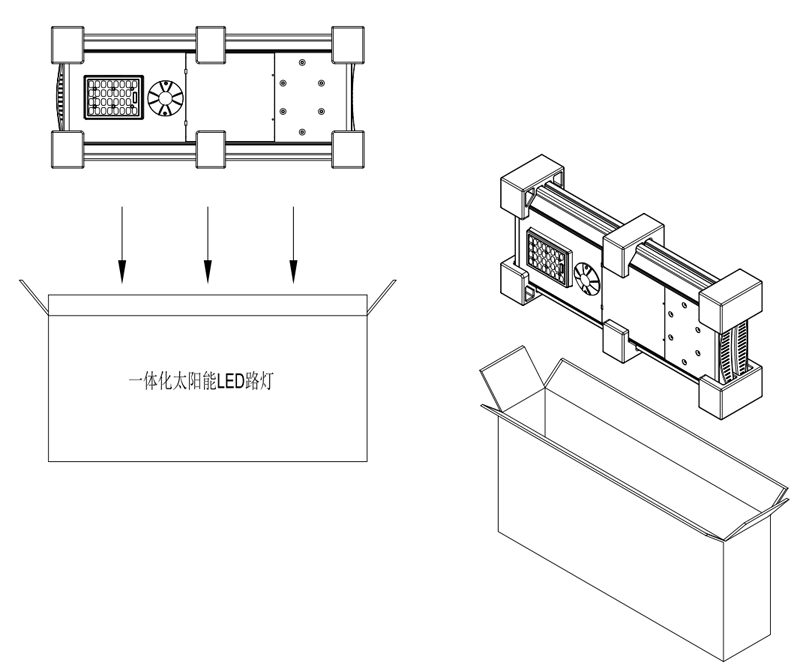

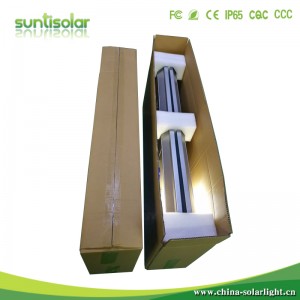

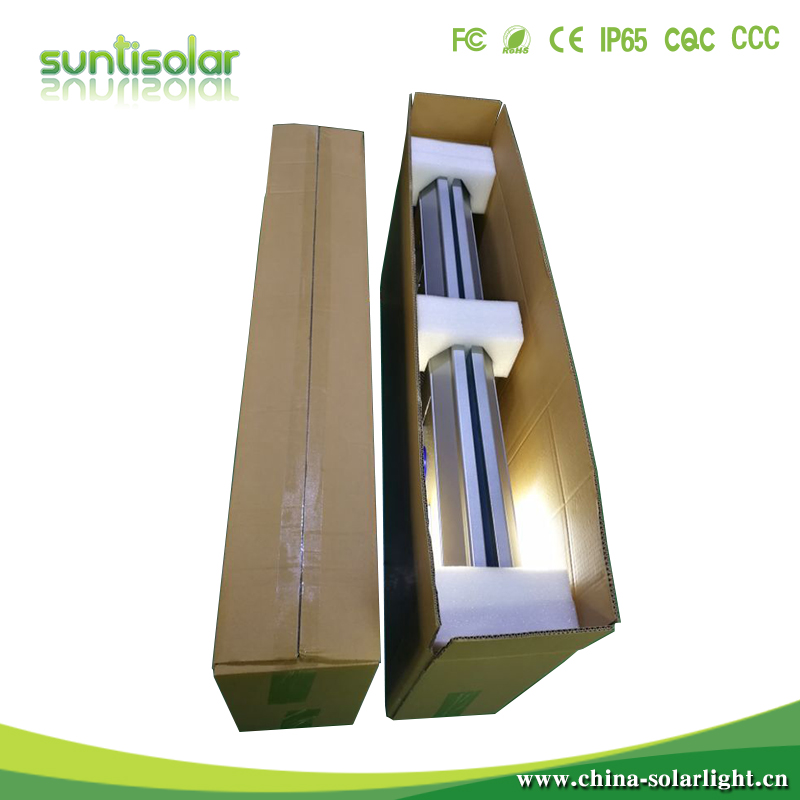

2.1 Package Sketch
2.2 Package List
|
Item |
Products |
Unit |
Quantity |
Note |
|
1 |
40W Solar Street Light |
PCS |
2 |
|
|
2 |
6mmAllen Wrench |
PCS |
1 |
2% |
|
3 |
14mmAllen Wrench |
PCS |
1 |
2% |
|
4 |
Installation Instruction |
PCS |
1 |
|
|
5 |
Certificate of Approval |
sheet |
1 |
|
|
6 |
Test Report |
PCS |
1 |
|

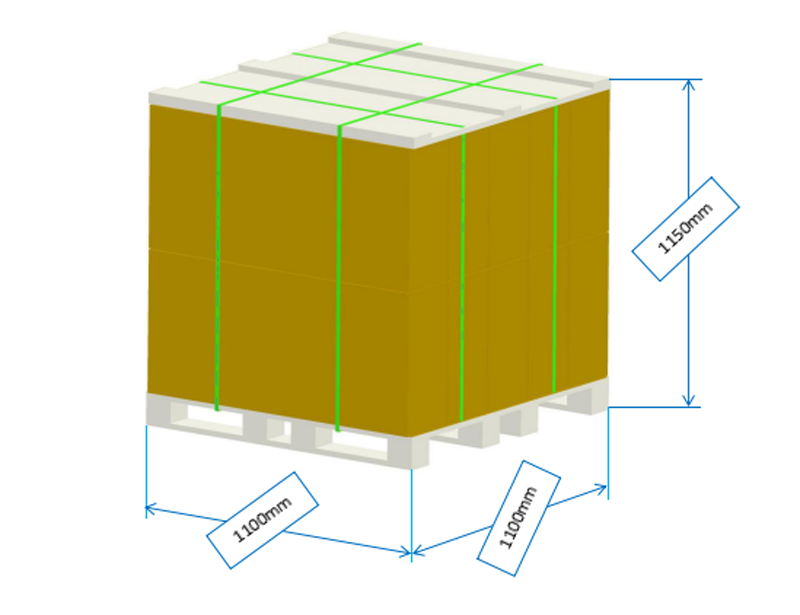

2.3 Pallet Sketch
Pallet Size：1100×1100×115mm
Goods with Pallet Size：1100×1100×1150mm
Quantity：10Boexs×2pcs/ Boexs=20PCS
