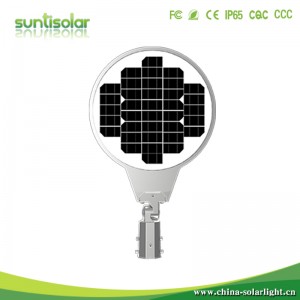

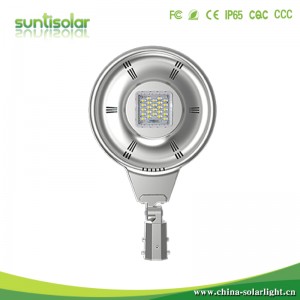

C95 15W SMD Specification


  • FOB Price: US $0.5 - 9,999 / Piece
  • Min.Order Quantity: 100 Piece/Pieces
  • Supply Ability: 10000 Piece/Pieces per Month
  • Product Detail

    1.1 Technical Parameters

    Model: XT595SETY15-D5
    LED Quantity: 24 Pcs 5050
    Module Quantity (pcs): 1
    Power: 15W
    Solar Panel: Monocrystalline Silicon 18V/22W
    Battery: Grade A Lithium Ion Battery 10Ah/12V
    Adjustable Angle of Module(±10°): Yes
    Control Mode: Light Control+Time Control
    Working time under full power: 12h
    Working time under intelligent power: 84h
    Charging time(1000W/m2) 6h
    On-off threshold level: on≦8LUX, OFF≧10LUX
    Secondary lighting distribution: PC
    Beam Angle: C0~180 140°/ T90~270 70°
    Protection Grade: IP65
    Photoelectric Parameter
    Color Temperature(K): 3,000-6,500K
    CRI(Ra): 70
    Lumens(lm): 1,800-2,100lm
    Intelligent Mode: Yes
    Working under rainy day: 7-10 Days
    Package:
    Net Weight (kg): 8.0kg
    Gross Weight (kg): 18.0kg (2pcs/box)
    Product Dimension(mm): 595×490×95mm±5%
    Package Dimension(mm): 660×285×550mm±5%
    Quantity in 20/40 Feet Container 420/1,152PCS
    Environmental Temperature
    Discharging Temperature (℃): -20~60
    Charging Temperature (℃): -20~60
    Storage Temperature (℃): 0~45
    Installing Parameter
    Diameter of Pole: Ø68mm
    Screw Fixation: Yes
    Wind resistance level (km/h): 209
    Installation Height (m): 3-4
    Installation Distance (m): 9-12
    Irradiation Area(m2): 48

    1.2 Product Dimension (mm)

    1.3 Distribution Diagram

    1.4 Light Pole Sketch (3m)

    微信图片_20190330143940
    1.5 15W Illumination Simulation-3m

    微信图片_20190330144059

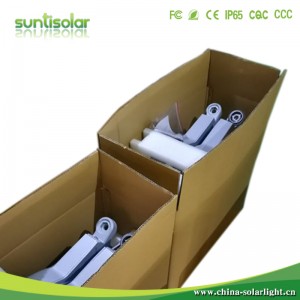

    2 Package
    2.1 Package Sketch

    2.2 Package List

    Item

    Products

    Unit

    Quantity

    Note

    1

    15W Solar Street Light

    PCS

    2



    2

    6mm Allen Wrench

    PCS

    1

    2%

    3

    14mm Allen Wrench

    PCS

    1

    2%

    4

    Installation Instruction

    PCS

    1



    5

    Certificate of Approval

    Sheet

    1



    6

    Test Report

    PCS

    1



    2.3 Pallet Sketch
    Pallet Size: 1,300×1,100×115mm
    Goods with Pallet Size: 1,300×1,100×1,260mm
    Quantity: 16 Boxes×2pcs/Box=32Pcs

    微信图片_20190330144129
