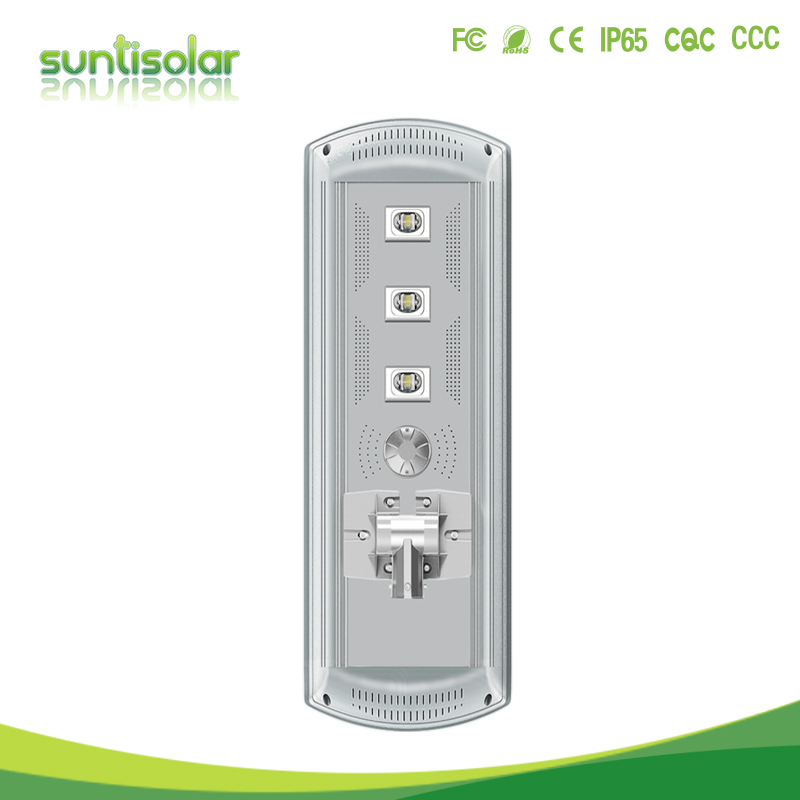

Z88 100W COB Specification


  • FOB Price: US $0.5 - 9,999 / Piece
  • Min.Order Quantity: 100 Piece/Pieces
  • Supply Ability: 10000 Piece/Pieces per Month
  • Product Detail

    1.1 Technical Parameters

    Model XT1540SELD100-J
    LED Quantity 1
    Module Quantity (pcs) 3
    Power  100W

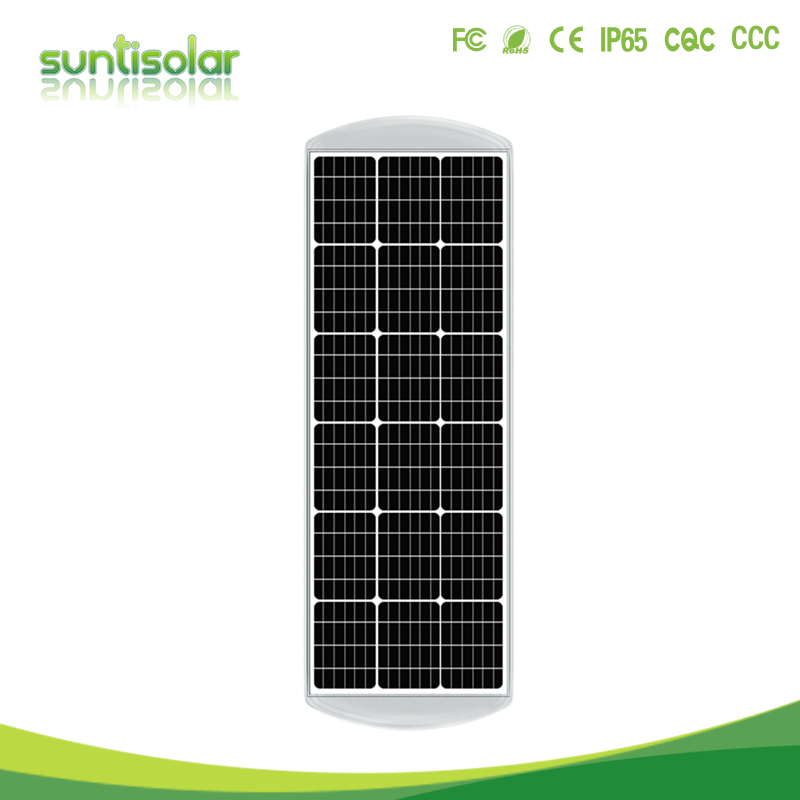

    Solar Panel Monocrystalline Silicon of 36V/120W

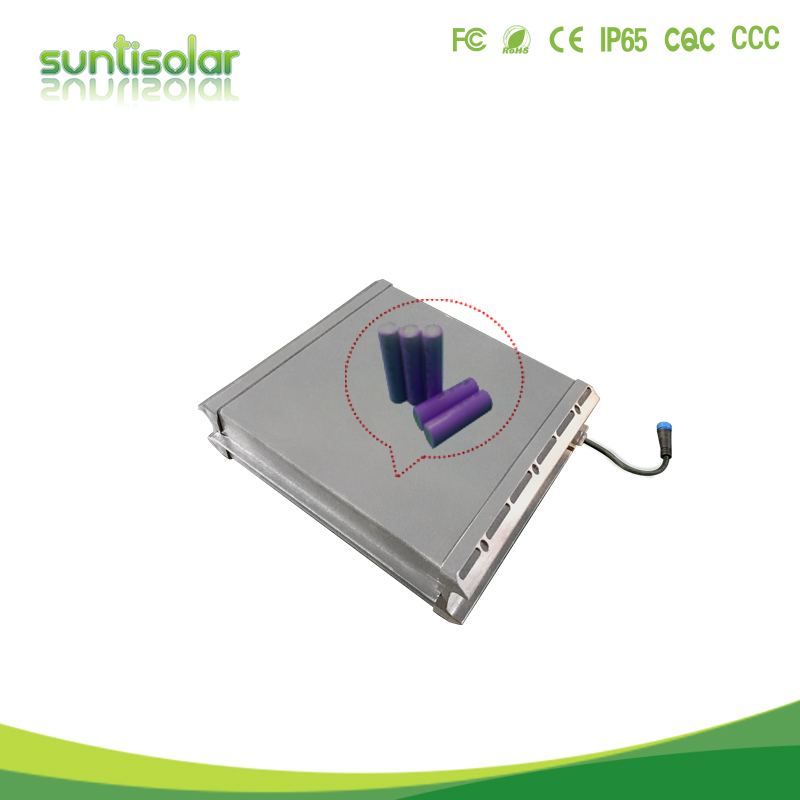

    Battery Grade A Lithium Ion battery of model 32650 30Ah/24V
    Adjustable Angle of Module (±15°) Yes
    Contrtol Mode Light Control+Time Control
    Working time under full power 12h
    Working time under smart power control 84h
    Charging time (1,000W/m2) 6h
    On-off threshold level on≦8LUX, OFF≧10LUX
    Material for secondary lighting distribution Borosilicate
    Beam Angle C0~180 160°/ T90~270 80°
    Protection Grade IP65
    Photoelectric Parameter
    Color Temperature (K) 3,000-6,500K
    CRI (Ra) 70
    Lumens (lm) 9,000-10,000lm
    Intelligent Mode Yes
    Working under rainy days 7 to 10 days
    Package
    Net Weight 28.5kg±5%
    Gross Weight  59.5kg±5% (2pcs/box)
    Product Dimension 1,540*525*86mm±5%
    Package Dimension 1,550*260*580mm±5%
    Quantity in 20/40 Feet Container (including accessories) 162PCS/414PCS
    Environmental Temperature
    Discharging Temperature  -20~60
    Charging Temperature -20~60
    Storage Temperature 0~45
    Installation
    Diameter of Pole Ø89mm
    Screw Fixation YES
    Wind resistance level(km/h) 209
    Installation Height (m) 9-10
    Installation Distance (m) 36-40

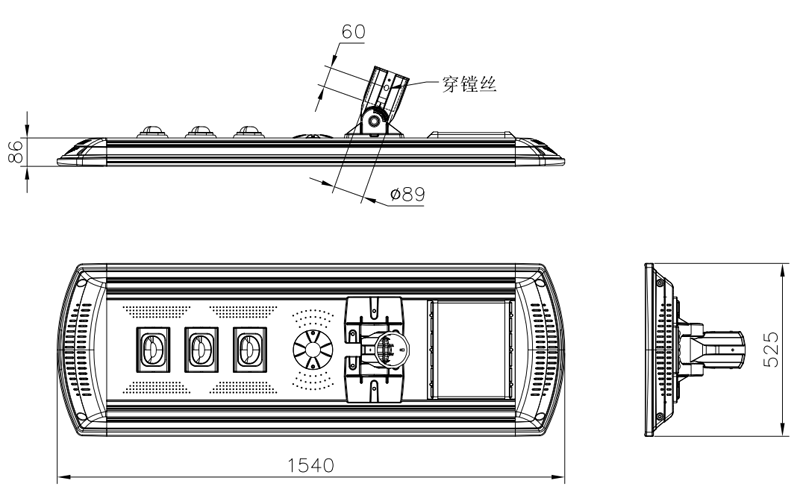

    1.2 Product Dimension (mm)

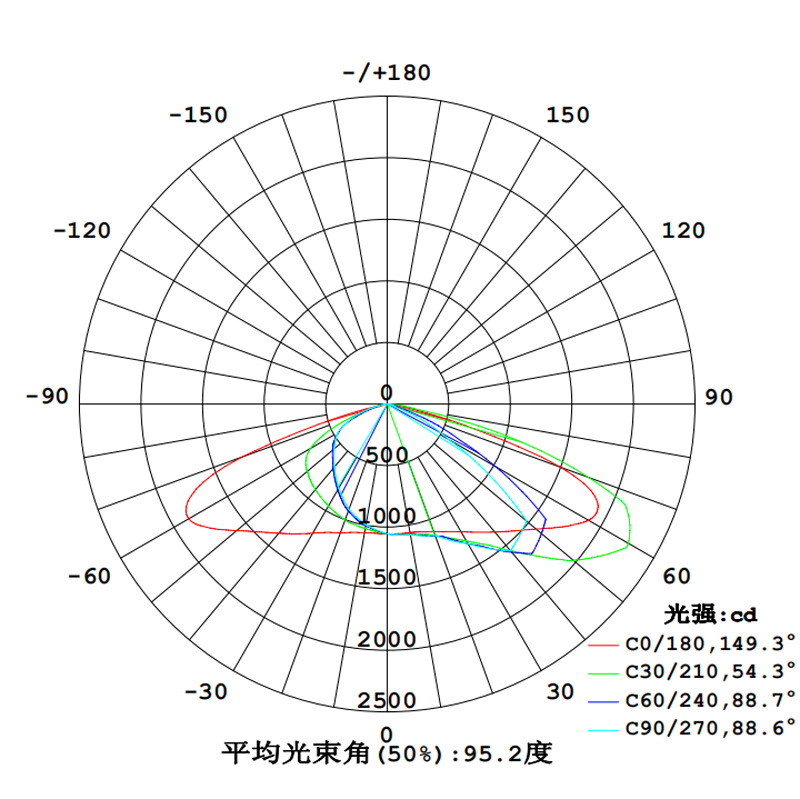

    1.3 Distribution Diagram

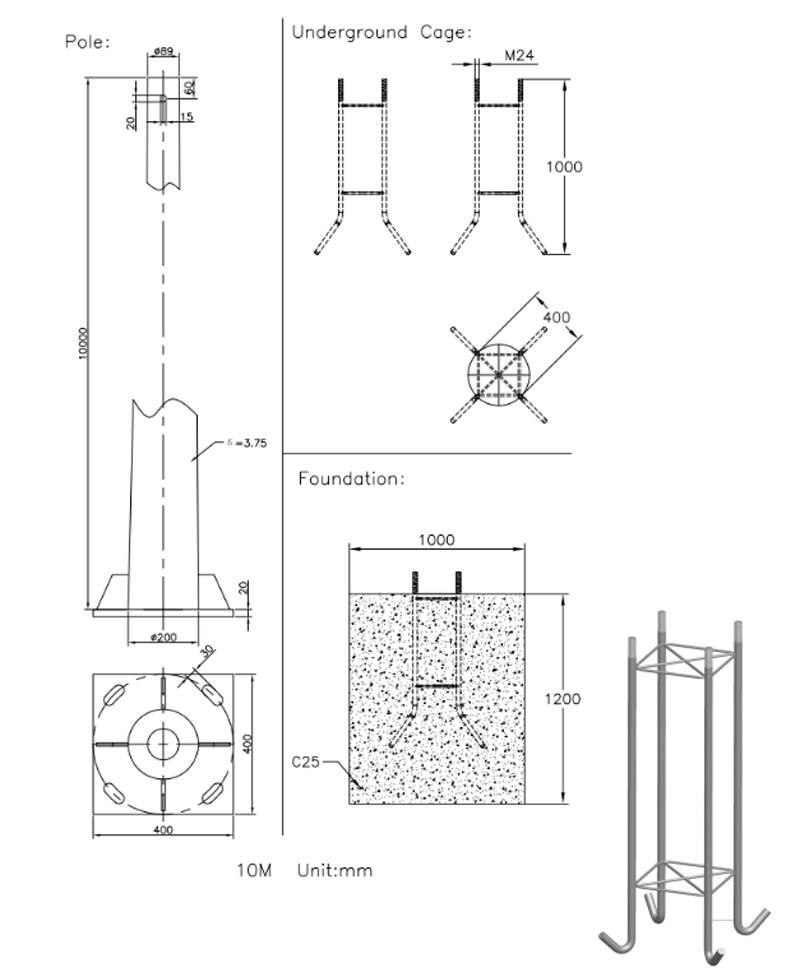

    1.4 Light Pole Sketch

    微信图片_20190330113706

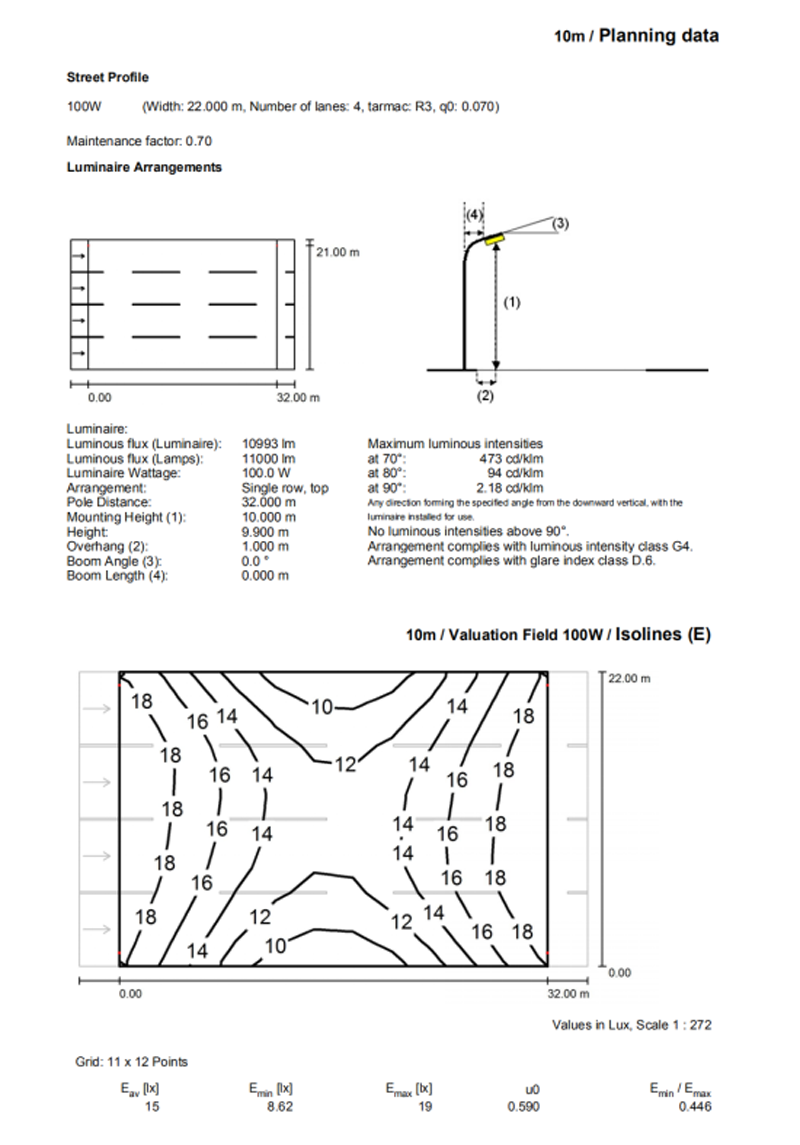

    1.5 100W Illumination Simulation-10m

    微信图片_20190330113725



    2 Package

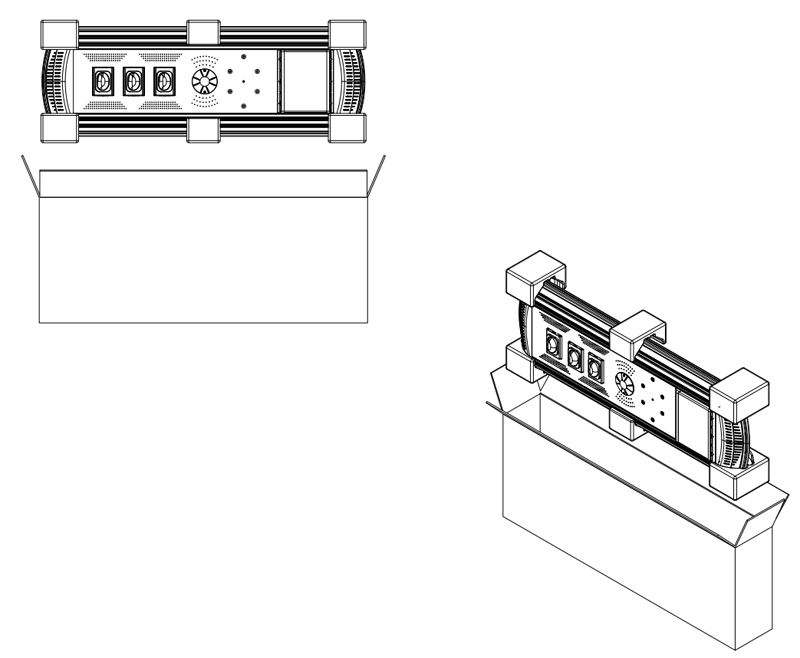

    2.1 Package Sketch

    2.2 Package List

    Item

    Products

    Unit

    Quantity

    Note

    1

    100W Solar Street Light

    PCS

    2



    2

    6mm Allen Wrench

    PCS

    1

    2%

    3

    14mm Allen Wrench

    PCS

    1

    2%

    4

    Installation Instruction

    PCS

    1



    5

    Certificate of Approval

    Sheet

    1



    6

    Test Report

    PCS

    1



    2.3 Pallet Sketch
    Pallet Size: 1,550×1,100×115mm
    Goods with Pallet Size: 1,550×1,100×1,280mm
    Quantity: 8 Boxes×2pcs/Box=16 Pcs

    微信图片_20190330113754
